I need ATF-35143 nonlinear model for awr microwave office.

Hello.

I got a document of ATF-35143 from avago website.

I try to use STATZ model in microwave office. But it's NOT operation.

Please let me know how to apply it.

Thanks in advanced.

Hello,

use SSTATZ , whica SPICE-equivalent version of the STATZ FET model.
It should be used instead of the STATZ model for SPICE compatibility.

I tried long back it was working fine for me....If not chack properly units & scaling values while entering in AWR MWO SSTAZ...

Thanks for your reply.

Unfortunately, I didn't get result of SSTATZ model.

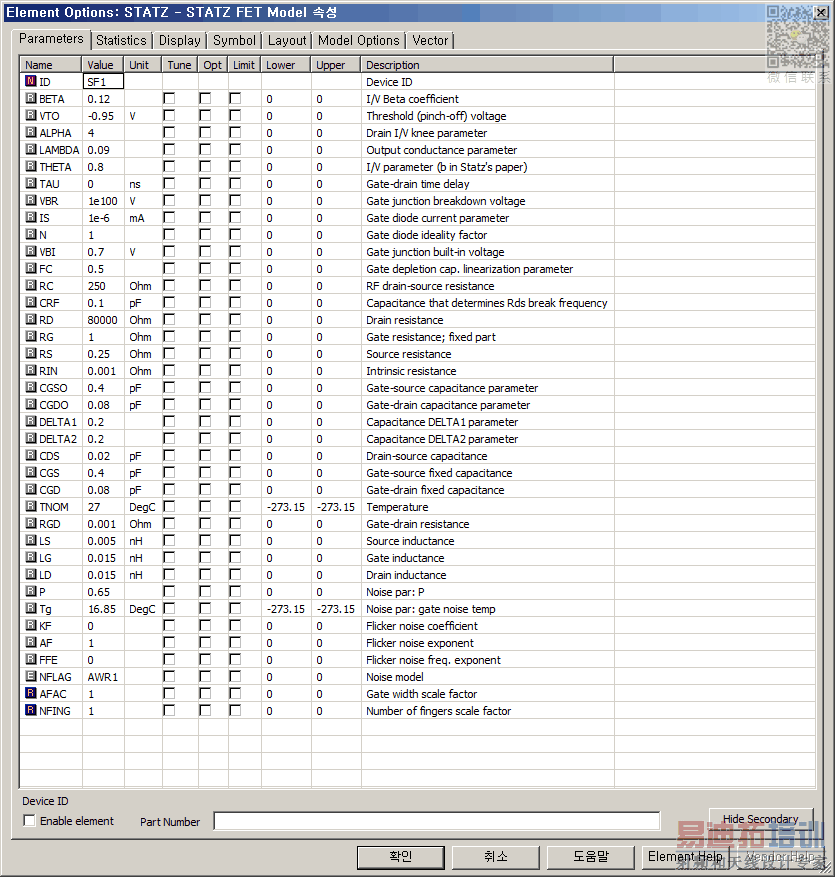

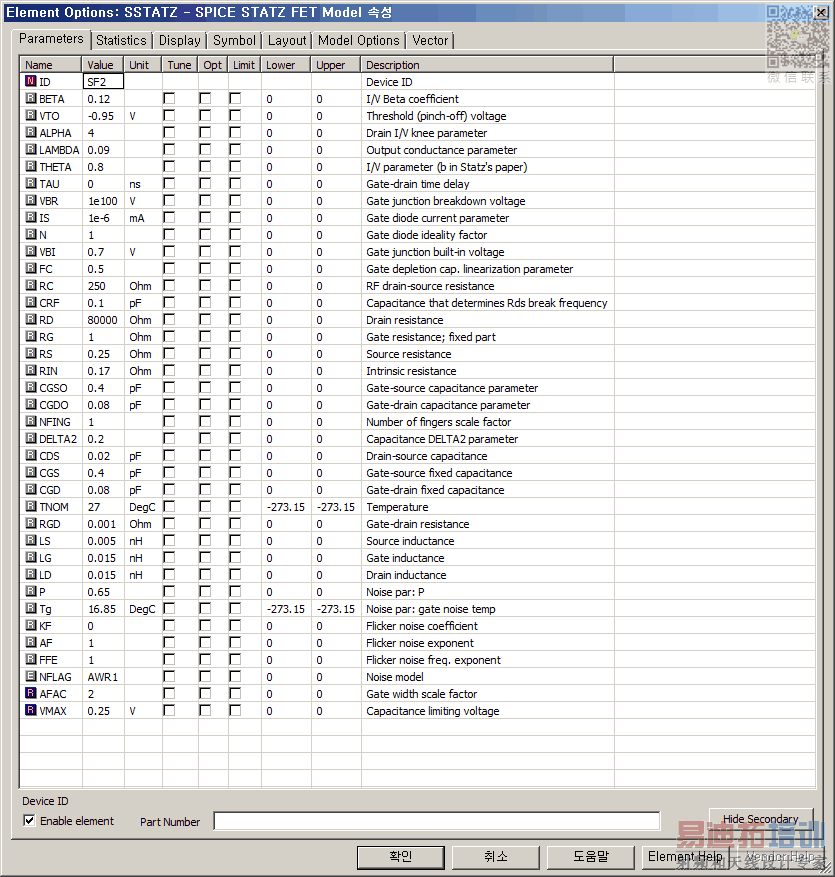

I attach images. Please check parameters of it.

Hello,

Okay then upload your MWO file *.emp...
I will try to see the settings & help you...

I uploaded some files. Please check them and help me.

I want to use nonlinear model for the application under 500 MHz.

Best regards
