CST 2008 如何載入Human Model Dataset?.

录入:edatop.com     点击:

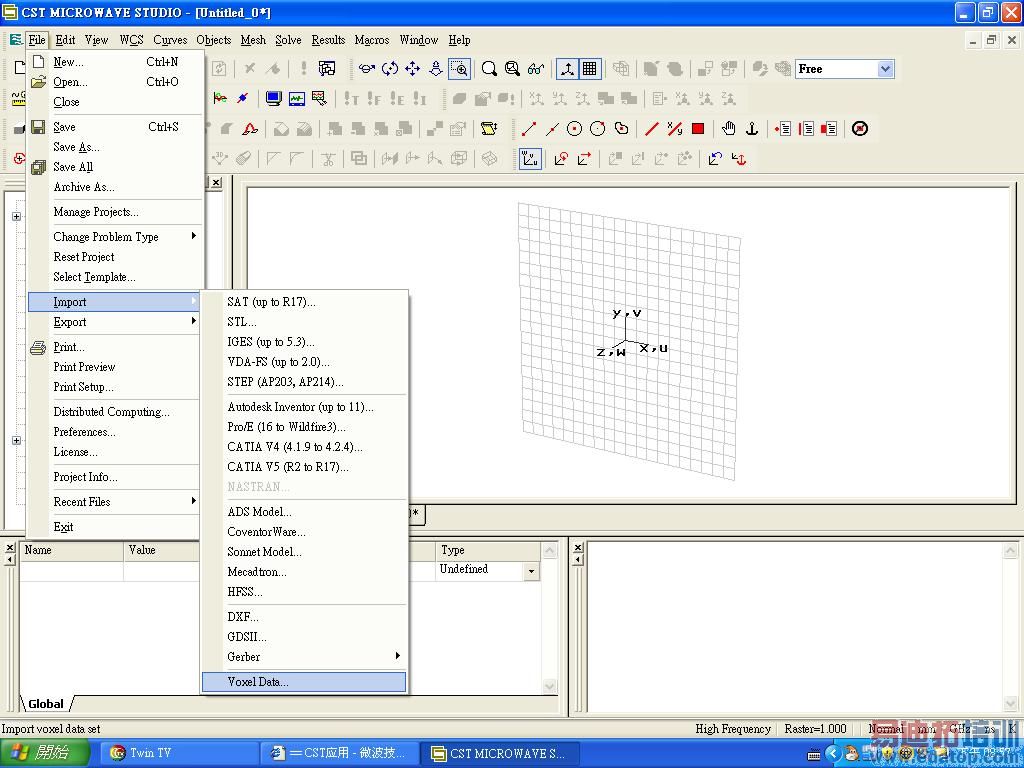

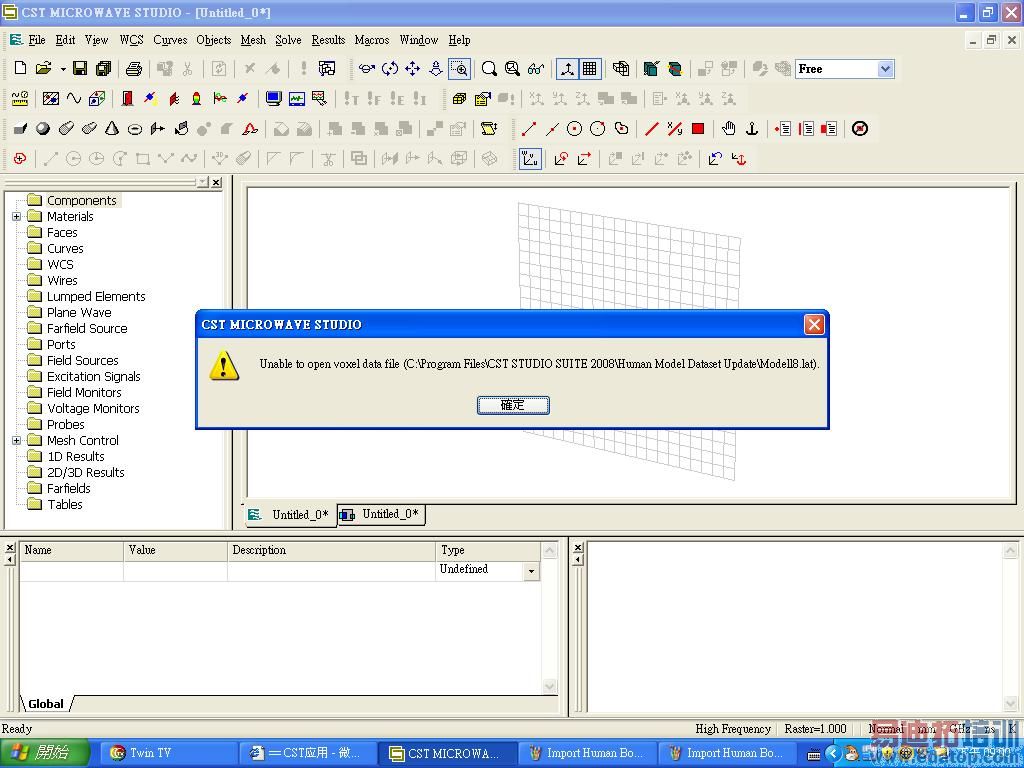

CST 2008 import "Human Model Dataset" 過程發現缺少一些檔案:
Modell1.lat
Modell2.lat
--------------
Modell8.lat
不知道有沒有人在CST 2006B SP4以後版本見過這些檔案?
(相關細節見附件)
Many thanks!更多图片小图大图





组图打开中,请稍候......

My Pictures.rar

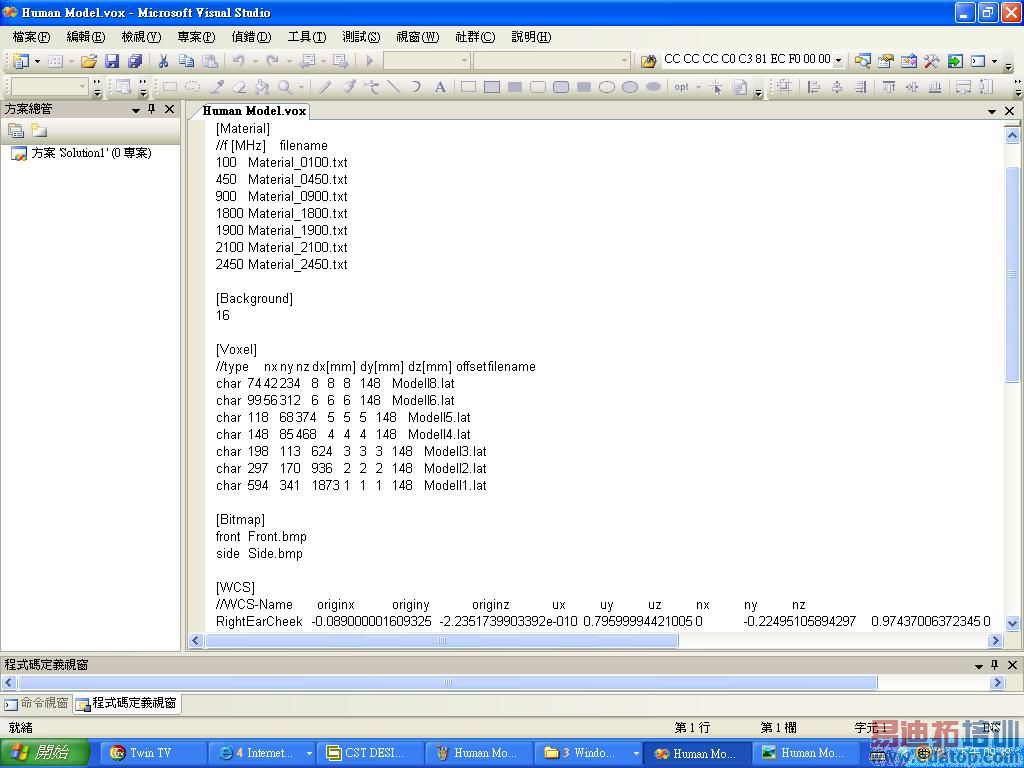

The data set(Modell1.latModell8.lat) are voxel data set.
"HUGO - The Professional Anatomical Data Set" includes 7 Levels of Detail - from voxel size of 1 x 1 x 1 millimetre (voxel data 361 MB) until voxel size of 8 x 8 x 8 millimetre (voxel data 0,7 MB). Each voxel correspondeces to a tissue.
誰知道如何找到這些檔案.




没做过这个东西,希望高手解答



上次在清华开会时,张敏好像说过,据说那个是加密的要另外申请使用



听说要建立亚洲人的人体数据库,不知道出来了没有



听说香港中文大学和CST China合作在开展亚洲人的人体数据库项目



The License Agreement(*)"A single License Agreement covering use of both the male and female Visible Human Project® datasets is available, as either a text file or a WordPerfect file" at NLM WebSite, as well as CILEA WebSite as a HTML file and as text and Word6.0 files.
How to get the DataAfter the NLM have given you the username and password, you can get the data from Milan Mirror Site .You can download all or part of the DataSet via ftp (ftp vhd-mms.cilea.it):
MALE DATASET
FEMALE DATASET

http://vhd-mms.cilea.it/Inglese/frame_eng1.htm



这些数据都是要出钱购买的中国人种数据还没有完成 这次做的数据模型精度比较高
现在好想只完成人头部分



学习中!
了解一下相关内容!




请问楼主就是从那个网站上下载的数据然后导入的吗?目前也想吧人体搞进CST中,没有数据库啊,而且人体放进去网格是不是太大了?
