small dipole antenna simulation using CST microwave studio
录入：edatop.com 点击：

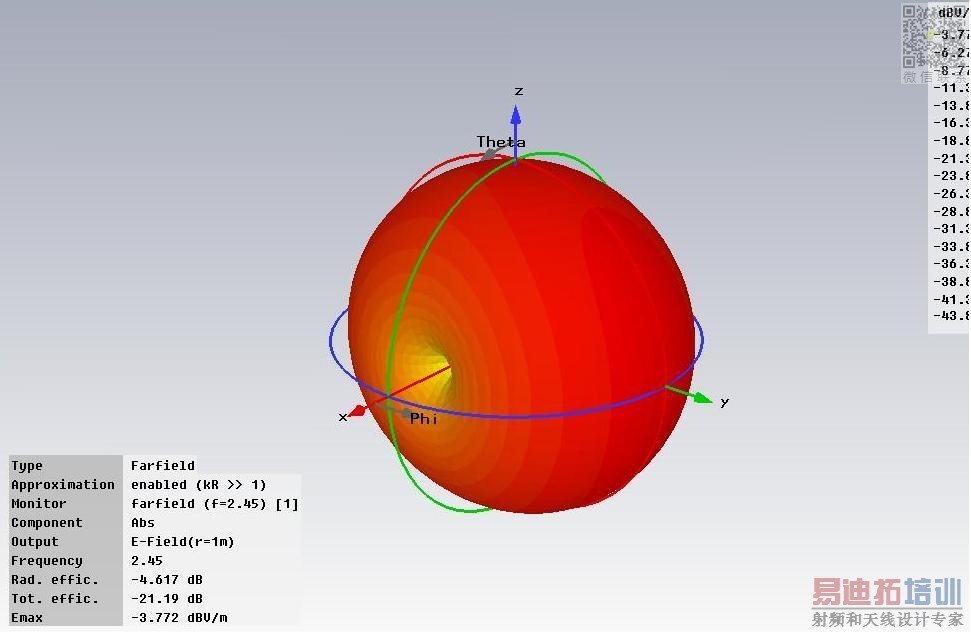

hello, I have done the simulation of small dipole using CST microwave studio. The photo of E-field plot is attached.
1. can anyone help check if it is correct? I know that small dipoe only has E field in theta direction; it should be zero in the phi and r direction of a spherical coordinates. Does my graph show that? I am confused because I see nonzero E field when in Phi direction or I may see wrongly?
2. Is the E field plot normalized by default?
3. How can i derive the input impedance from my CST simulation?
I really appreciate your help!
1. can anyone help check if it is correct? I know that small dipoe only has E field in theta direction; it should be zero in the phi and r direction of a spherical coordinates. Does my graph show that? I am confused because I see nonzero E field when in Phi direction or I may see wrongly?
2. Is the E field plot normalized by default?
3. How can i derive the input impedance from my CST simulation?
I really appreciate your help!
