差分线对规则设置

LISTING: 1 element(s)

           < DRC ERROR >

  Class:           DRC ERROR CLASS
  Subclass:        TOP
  Origin xy:       (42.1000 82.2000)

  CONSTRAINT:      Line to Line Spacing
  CONSTRAINT SET:  DEFAULT
  CONSTRAINT TYPE: NET SPACING CONSTRAINTS
    Constraint value: 0.16 MM
    Actual value:     0.16 MM

  - - - - - - - - - - - - - - - - - - - -

  Element type:    HORIZONTAL LINE SEGMENT
  Class:           ETCH
  Subclass:        TOP

  part of a connect line
  Part of Net Name: 100PHY_TPFIN

segment:xy (44.8674 81.8800) xy (42.1000 81.8800) width (0.1600)

  - - - - - - - - - - - - - - - - - - - -

  Element type:    ODD-ANGLE LINE SEGMENT
  Class:           ETCH
  Subclass:        TOP

  part of a connect line
  Part of Net Name: 100PHY_TPFIP

segment:xy (42.1000 82.2000) xy (41.0550 83.2450) width (0.1600)

  - - - - - - - - - - - - - - - - - - - -

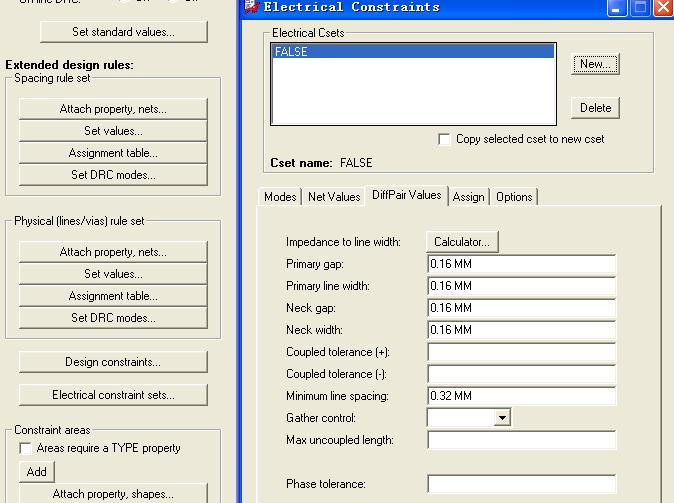

这些的关系如何，怎么设置

我的线宽1.6MM，一倍线距，如何才能不报错?

咋就没人说说呢?

添加 DIFFP_MIN_SPACE = 0.16 MM

0.32MM改为0.16MM

小编的帖子我一定顶
