求高手指导,导入网表,等长约束信息改变
录入:edatop.com 点击:

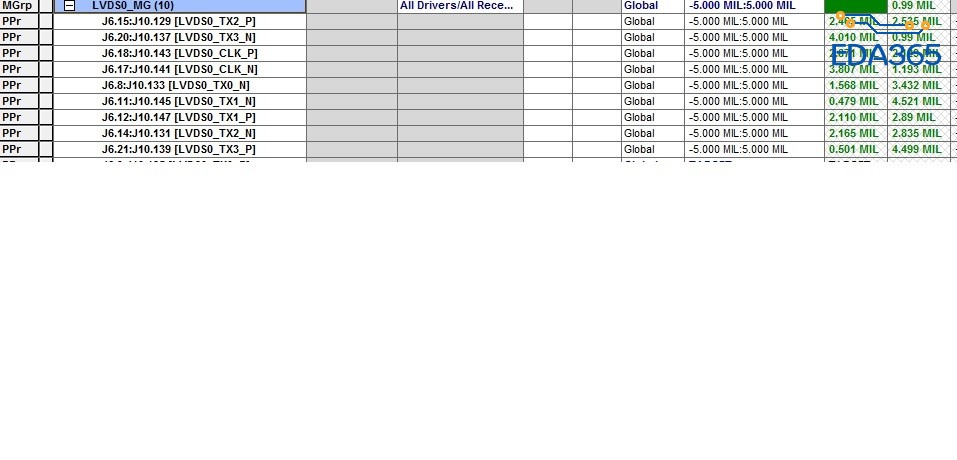

正常已经做等长的,都通过了,如下图:

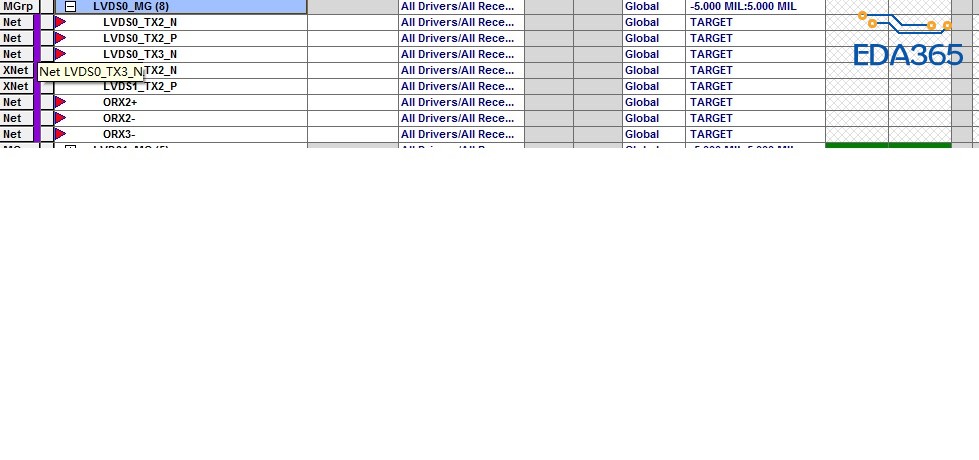

重新导入网表后,等长不通过啦,发现分组的信号已经变了
感觉是Xnet连接顺序被改变了
重新导入网表后,等长不通过啦,发现分组的信号已经变了
感觉是Xnet连接顺序被改变了
估计是net名变了导致的。

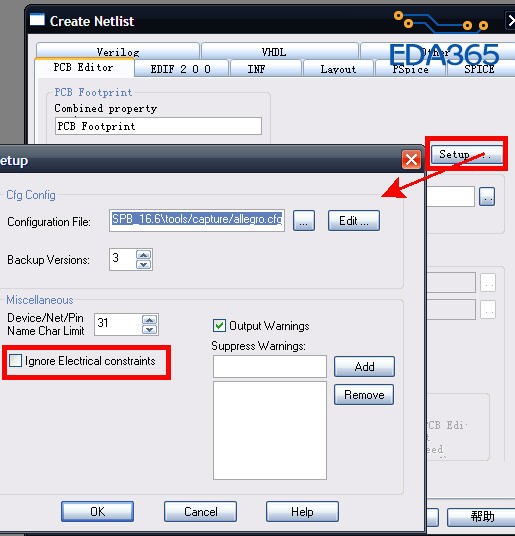

导出网表时,该选项不要勾选。
奇怪!这个选项没有勾选,原理图有个错误提示,不知道跟这个关系大不
ERROR(ORCAP-17054): The value defined for Ratsnest Schedule on this net is incorrect.This property will not be updated. Use the Property Editor to define the RATSNEST_SCHEDULE property. VCC3V3: SABRE LITE, 11 UART (187.96, 139.70)
ERROR(ORCAP-17054): The value defined for Ratsnest Schedule on this net is incorrect.This property will not be updated. Use the Property Editor to define the RATSNEST_SCHEDULE property. GND: SABRE LITE, 11 UART (106.68, 83.82)
高速信号的约束规则检查
net一直没有更改,不知为啥
