help defining the port excitation for a microstrip patch antenna using FEKO
录入：edatop.com 点击：
HELLO !
I want to simulate a microstrip patch antenna using FEKO but I get an error saying that
I am really a newbie to FEKO and any help doing this simulation is very appreciated.

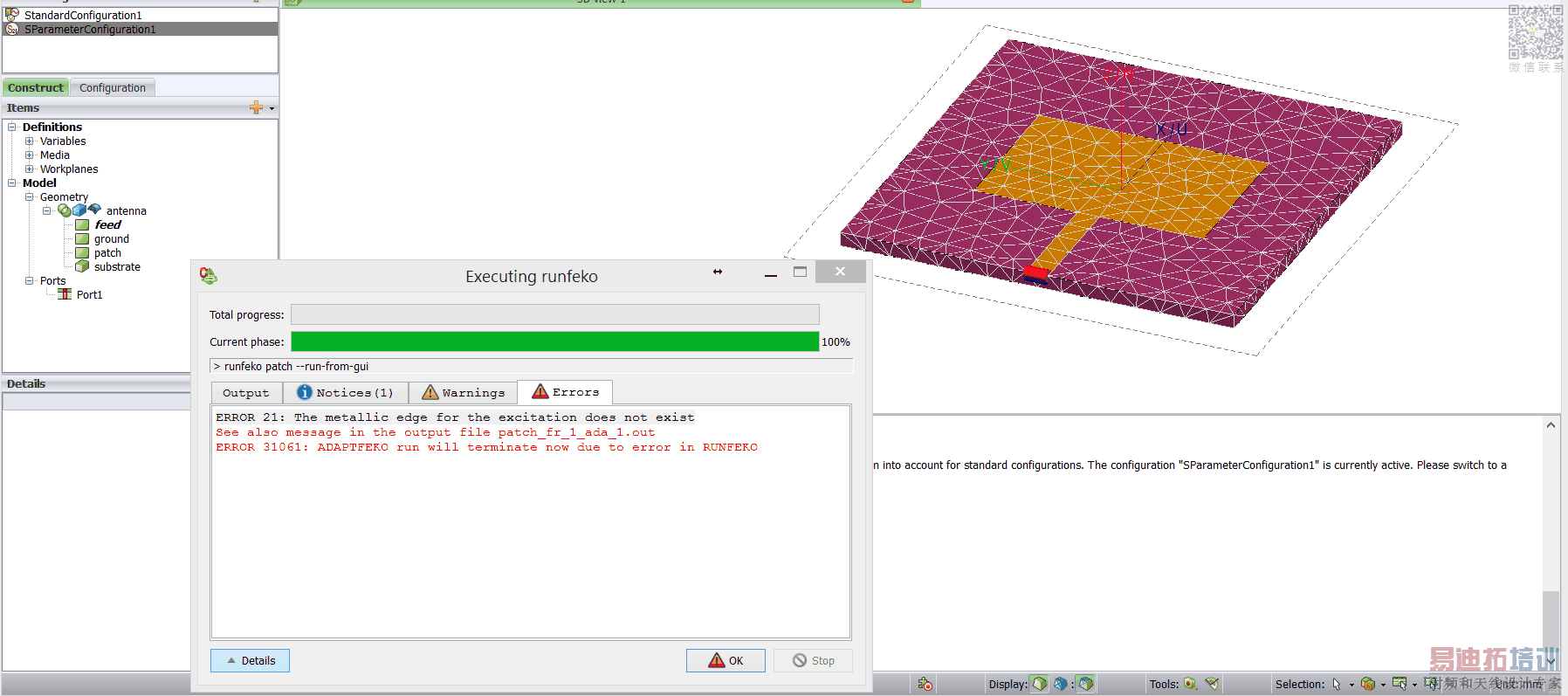

Note: I am attatching the antenna figure.
Thank you in advance!
i usually do the method shown in the picture above
i.e. creating a polyline, sweeping it and giving edge port.
the most common method i prefer is using multisub layer and microstrip port
I want to simulate a microstrip patch antenna using FEKO but I get an error saying that
Code:
ERROR 21: The metallic edge for the excitation does not exist
Note: I am attatching the antenna figure.
Thank you in advance!
Hello @ B4M
Since you are using edge port, there must be two metallic faces (positive and negative) attached to the edge.
From your figure, its clearly seen that only your edge(feedline) is of metallic in nature.
Which version of feko are you using ?
Hello Soundav! do you mean that I have to define another metallic face, if so where should it be placed in your opinion?!
Note: I am using a student version 14.0.
Hi B4M,
Can you upload the model or base paper?
i usually do the method shown in the picture above
i.e. creating a polyline, sweeping it and giving edge port.
the most common method i prefer is using multisub layer and microstrip port
Thank you for your reply!
Here I am attaching the model.Patch_eda.rar
Hi B4M, i tried opening the .rar file you sent but there is an error in opening the file.
can you send the .cfs (session file) also?
