安捷伦网分存的.s1p数据写入格式
录入：edatop.com 点击：

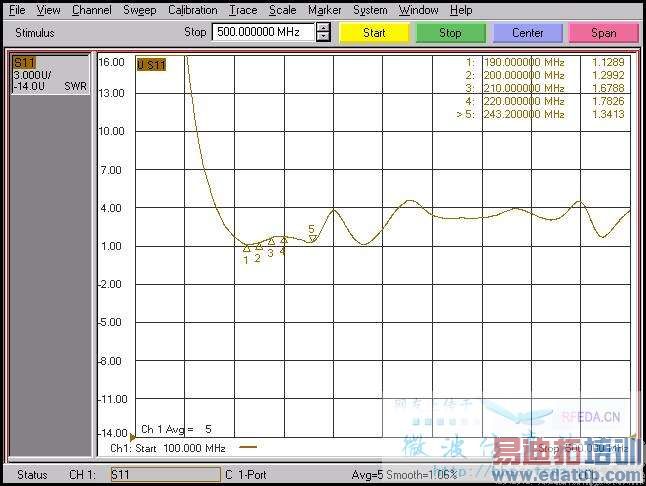

我测得vswr如图所示，但是存的s1p文件导入origin后画出来曲线和图中不一样，请牛人帮看看这是什么格式写入的？多谢，s1p数据文件在附件中
01.s1p.txt (68 K) 下载次数:16
!Agilent Technologies,E8363B,MY43030486,A.06.04.32
!Agilent E8363B: A.06.04.32
!Date: Saturday, August 21, 2010 09:47:28
!Correction: S11(Full 1 Port(1))
!S1P File: Measurement: S11:
# Hz SRI R 50
1000000008.167476e-0012.923486e+001
1002500008.226317e-0012.868024e+001
1005000008.284191e-0012.819903e+001
1007500008.338376e-0012.766289e+001
1010000008.383708e-0012.714169e+001
1012500008.434525e-0012.659509e+001
1015000008.479063e-0012.604418e+001
1017500008.527468e-0012.549990e+001
1020000008.571045e-0012.497320e+001
1022500008.616915e-0012.443978e+001
1025000008.662712e-0012.389600e+001
1027500008.707679e-0012.336234e+001
1030000008.751647e-0012.281037e+001
1032500008.790336e-0012.225081e+001
01.s1p.txt (68 K) 下载次数:16 !Agilent Technologies,E8363B,MY43030486,A.06.04.32
!Agilent E8363B: A.06.04.32
!Date: Saturday, August 21, 2010 09:47:28
!Correction: S11(Full 1 Port(1))
!S1P File: Measurement: S11:
# Hz SRI R 50
1000000008.167476e-0012.923486e+001
1002500008.226317e-0012.868024e+001
1005000008.284191e-0012.819903e+001
1007500008.338376e-0012.766289e+001
1010000008.383708e-0012.714169e+001
1012500008.434525e-0012.659509e+001
1015000008.479063e-0012.604418e+001
1017500008.527468e-0012.549990e+001
1020000008.571045e-0012.497320e+001
1022500008.616915e-0012.443978e+001
1025000008.662712e-0012.389600e+001
1027500008.707679e-0012.336234e+001
1030000008.751647e-0012.281037e+001
1032500008.790336e-0012.225081e+001
了解的大牛请指教，不想重测了，呵呵
请问一下楼主解决问题了吗？我最近也发现这个问题，不知道怎么讲S1P格式的S11数据转换成VSWR的数据，还请楼主指教！
!S1P File: Measurement: S11:
# Hz SRI R 50
Hz是频率，S是s11参数，RI 是指s11实部和虚部，R 50 是指参考阻抗为50欧姆
|反射系数|=|s11|=s11实部和虚部的平方和的算术平方根
驻波比=1+|反射系数|/1-|反射系数|
