Help me finish a 13.56 MHz PA

I am trying to complete a design started by my RF engineer, who to show his unhappiness with the management revealed little about the project.
I am not an rf engineer though i know some analog electronics.

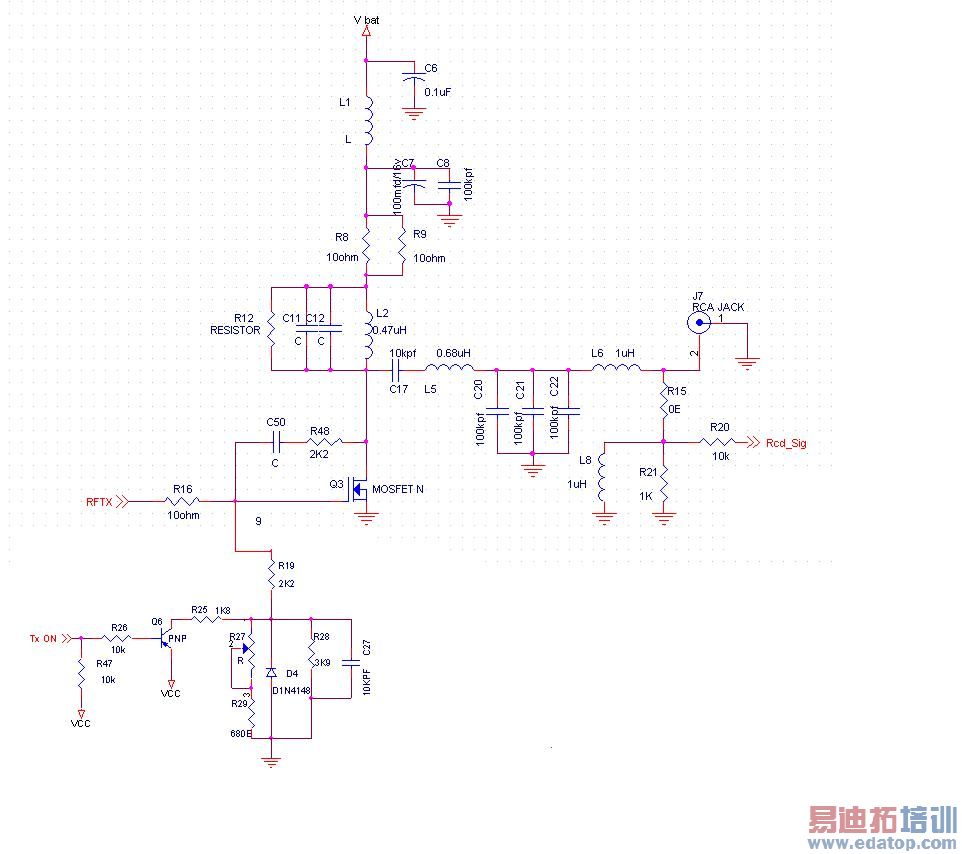

his power amplifier was something like the attachment,
can someone help me complete it ?
I am not even sure if it would even work.
[/img]

I guess, it has a specification?

ye
it was supposed to be a 1/2 watt amplifier for 13.56 MHz.
the supply was to be 7.2 volts.
this amplifier was to drive the ISO 15693 signals from S6700 tranceiver ic from TI.

Hi,
A pair of R8-R9 eats RF power unnecessarily. Why do you need it?
The set C11,C12,L2 and R12 seems to be an parallel LC with Q fixed by R12
and attached to an output network that I guess filter because is an class C,D,E... amplifier ?

So, you wish us to help you recover from the firing of one of our engineering bretheren?Not likely.

i guess i should have not said the reason why I needed help!
he wasn't fired anyways, it was some old time grudge.. if that can help me complete this....

HELP !
