当Y为某值时返回X的值

步骤 1: 用户在"Results (树项目)"上右键单击(在"ANSYS Electronics Desktop - Project1 - Cavity Filter_1800 - Output Variables Table 2 - SOLVED - [Project1 - Cavity Filter_1800 - Output Variables Table 2]"中)

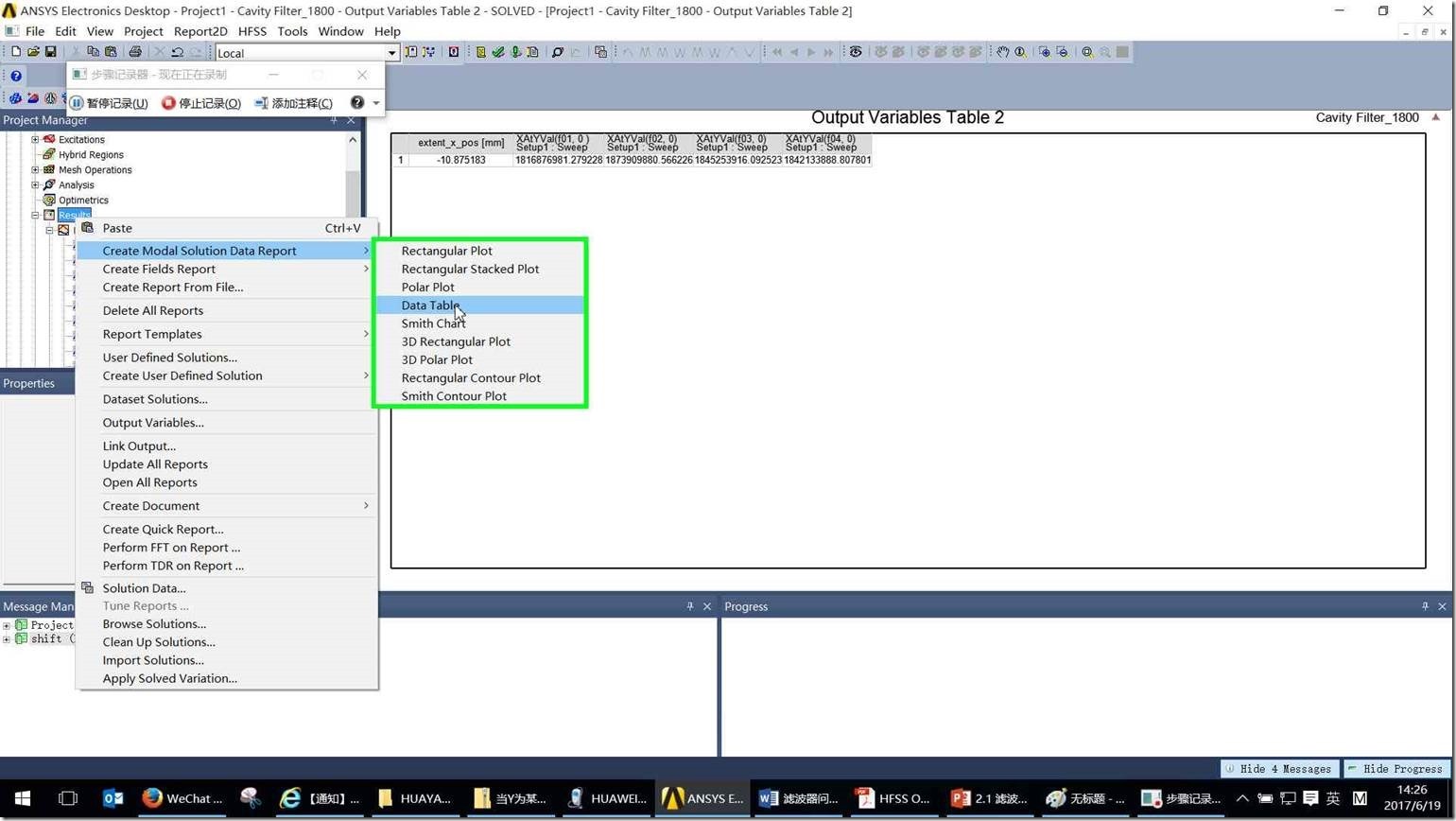

步骤 2: 用户在"Create Modal Solution Data Report (菜单项目)"上左键单击

步骤 3: 用户在"Data Table (菜单项目)"上左键单击

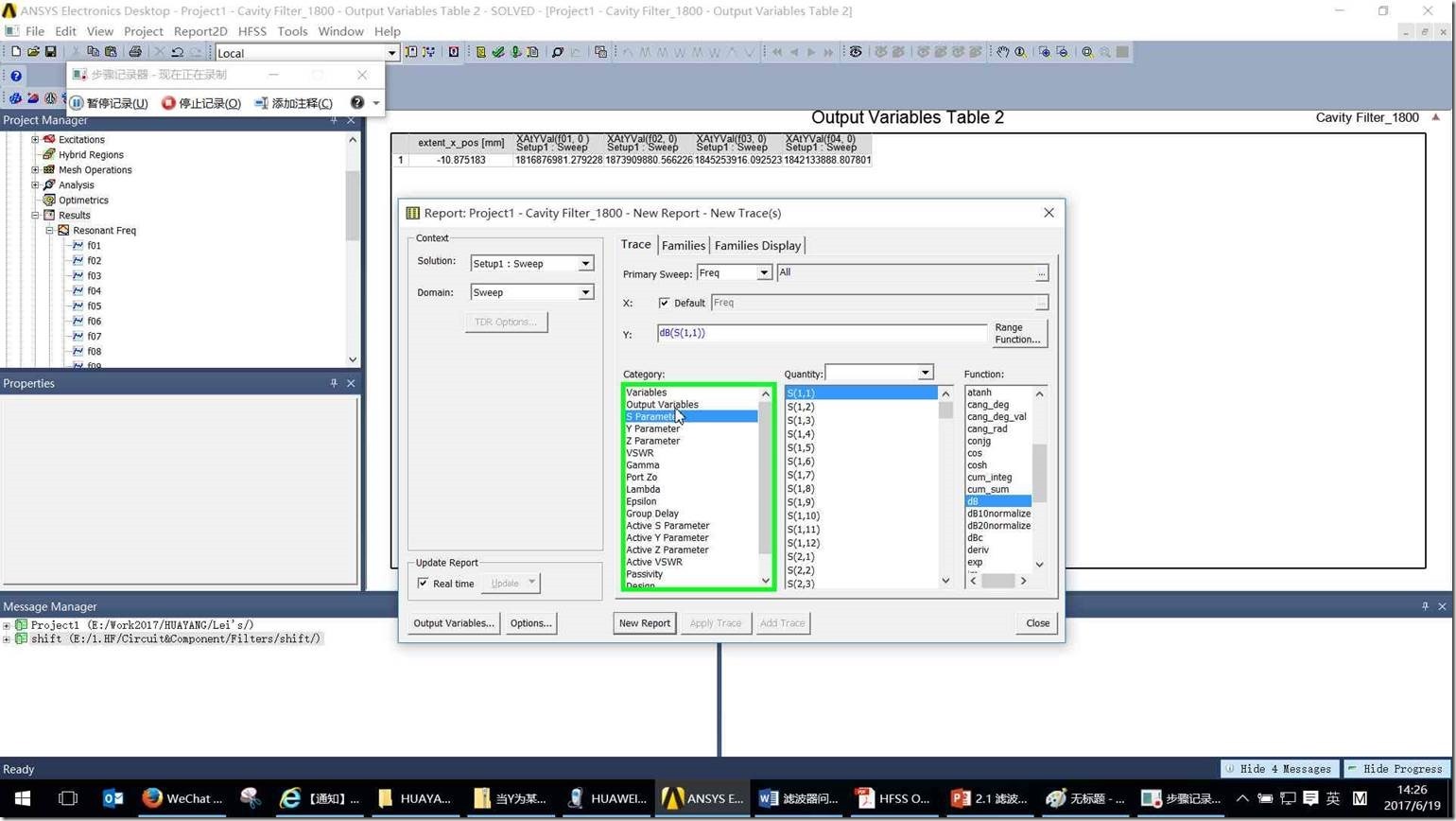

步骤 4: 用户在"Output Variables (列表项目)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - New Report - New Trace(s)"中)

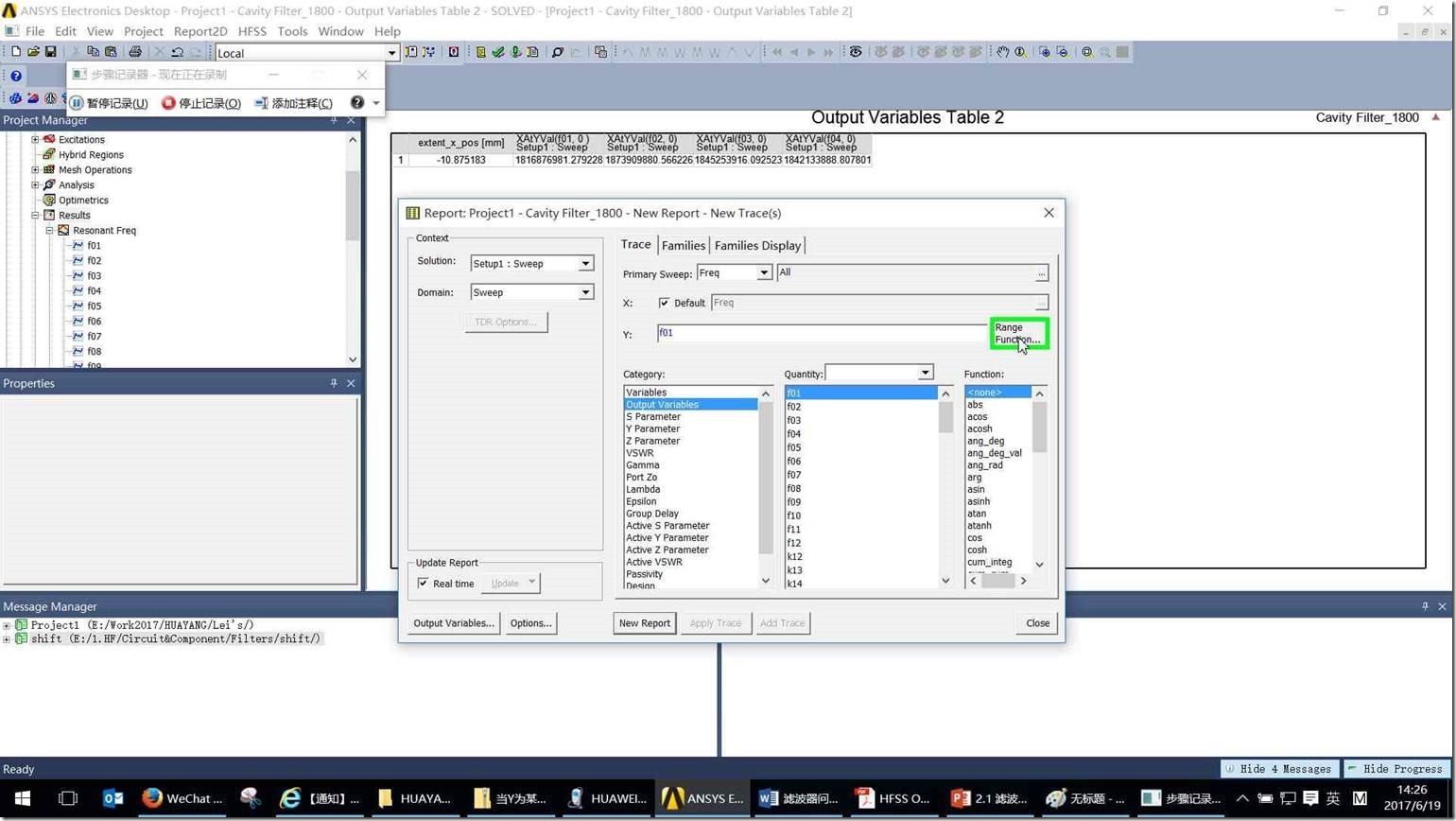

步骤 5: 用户在"Range Function... (按钮)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - New Report - New Trace(s)"中)

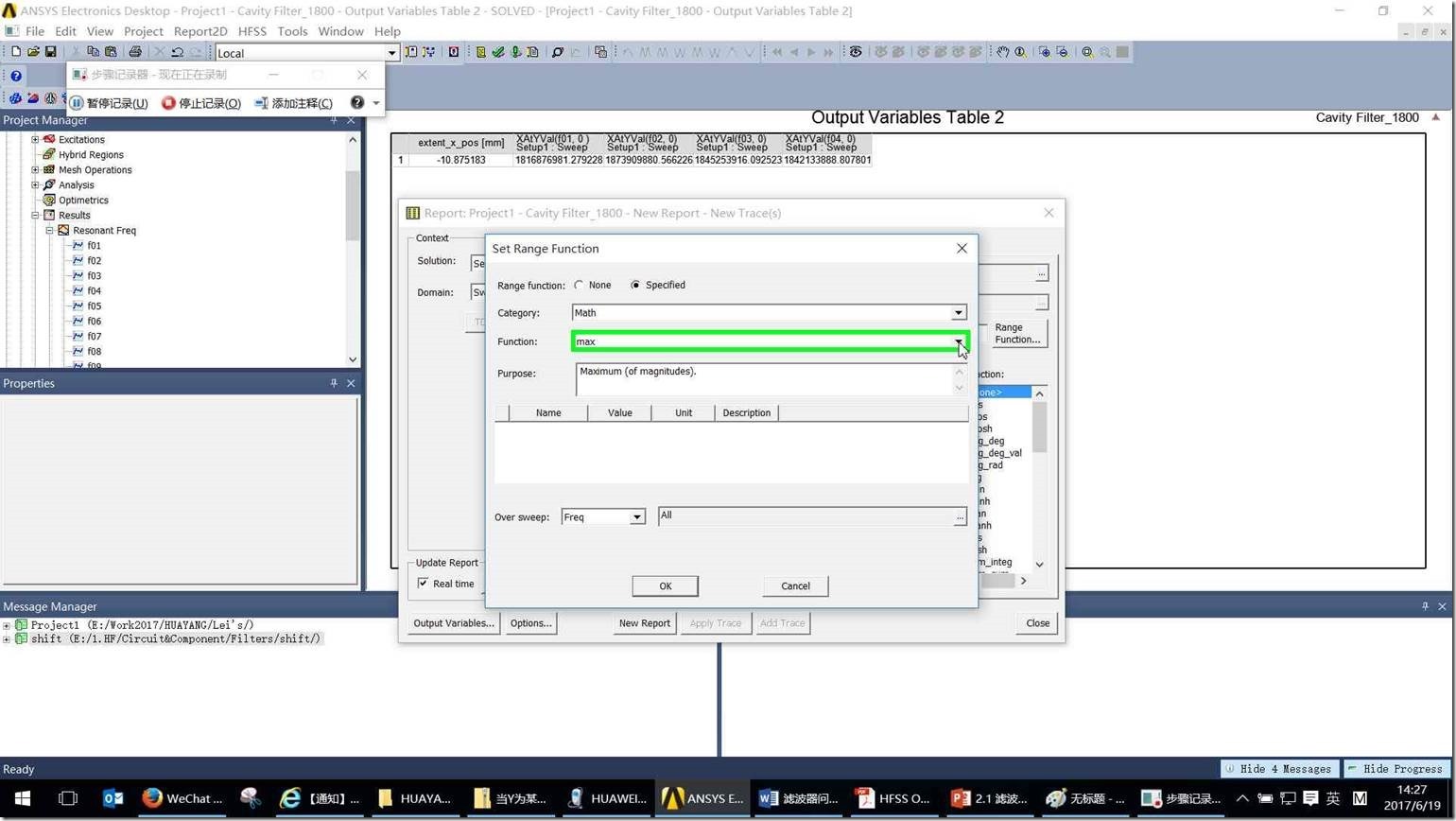

步骤 6: 用户在"打开 (按钮)"上左键单击(在"Set Range Function"中)

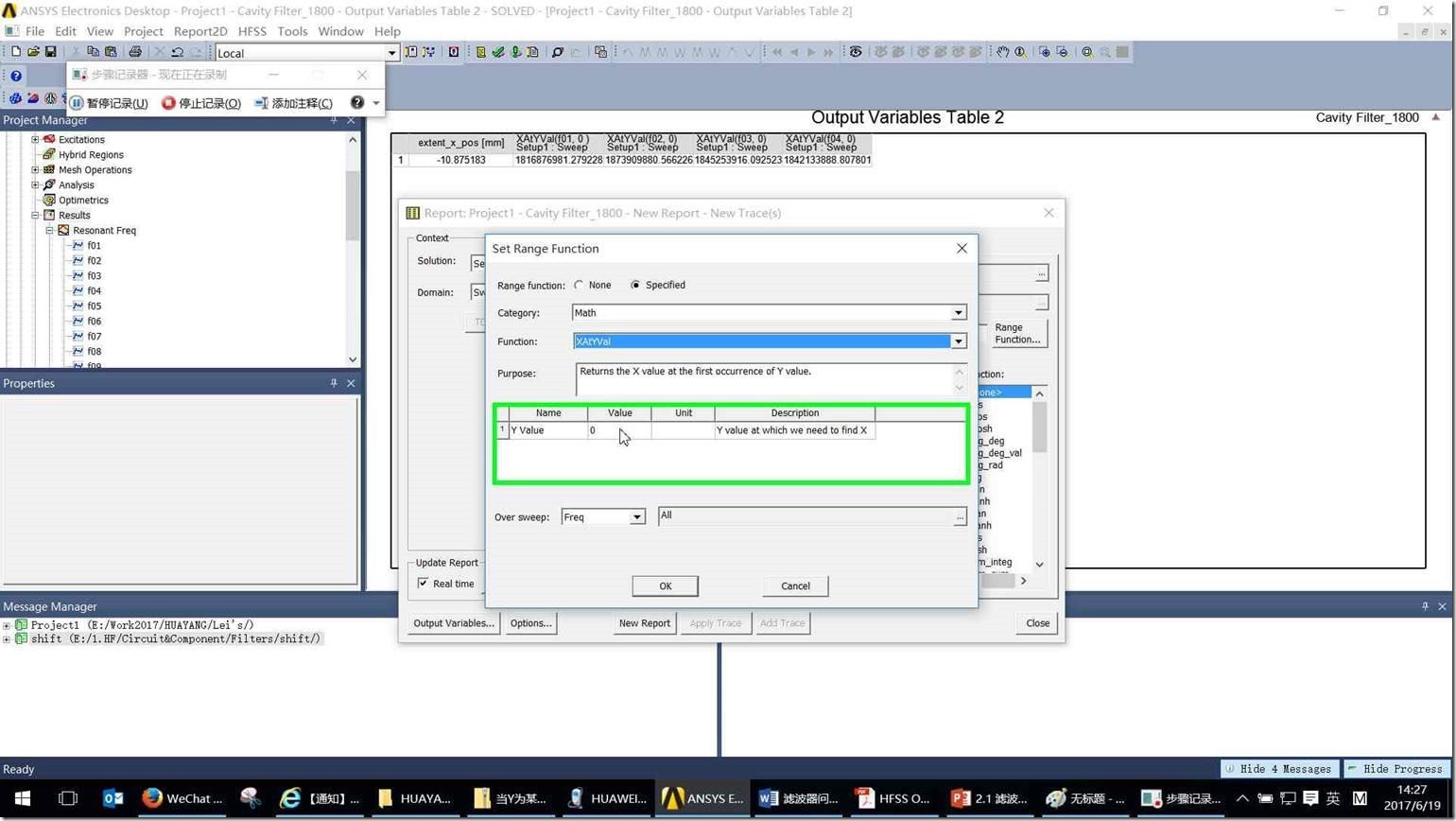

步骤 7: 用户在"XAtYVal (列表项目)"上左键单击

步骤 8: 用户在"Set Range Function (对话框)"上左键单击(在"Set Range Function"中)

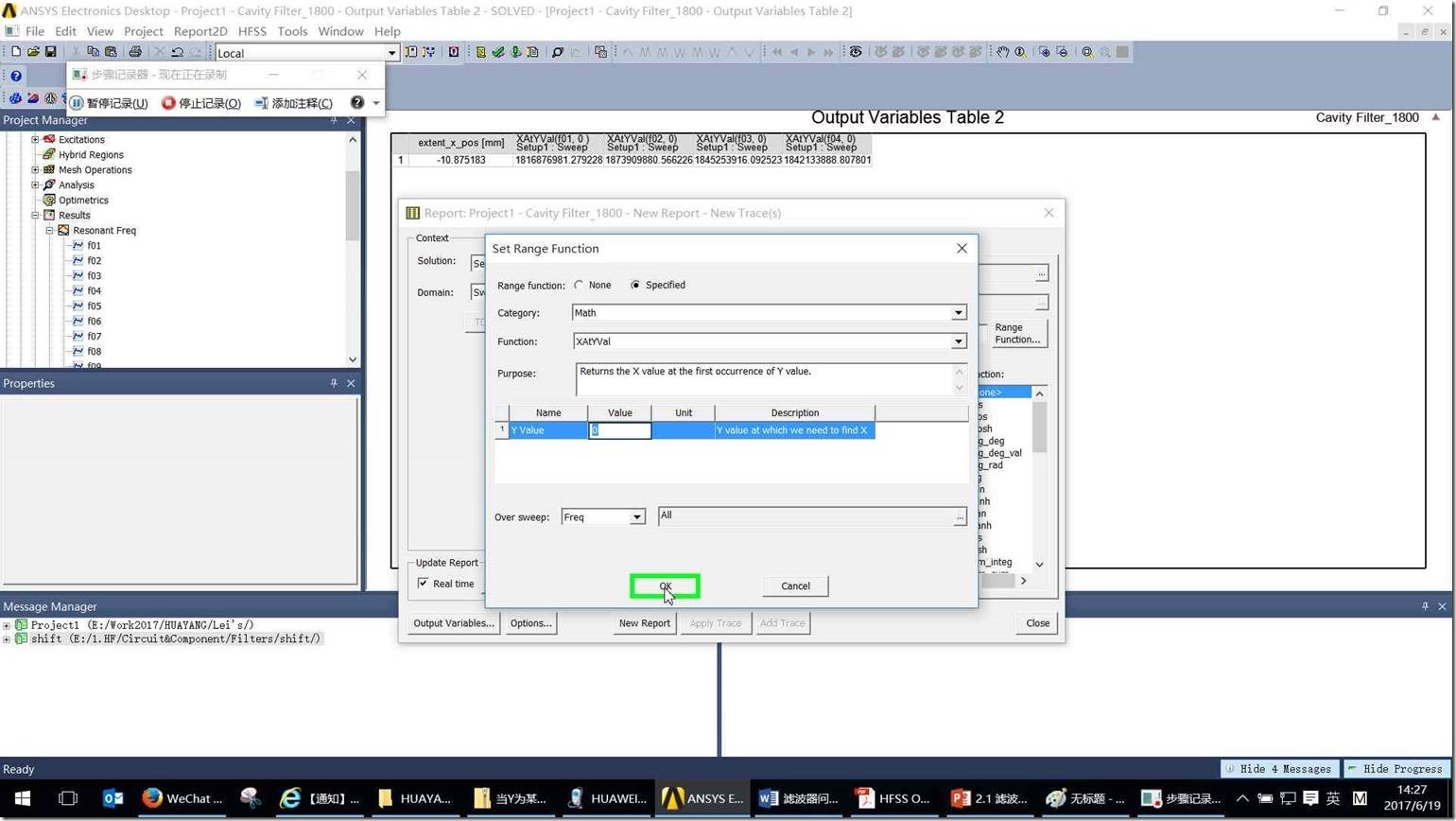

步骤 9: 用户在"OK (按钮)"上左键单击(在"Set Range Function"中)

步骤 10: 用户在"New Report (按钮)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - New Report - New Trace(s)"中)

步骤 11: 用户在"f02 (树项目)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - Output Variables Table 3 - XAtYVal(f01, 0 )"中)

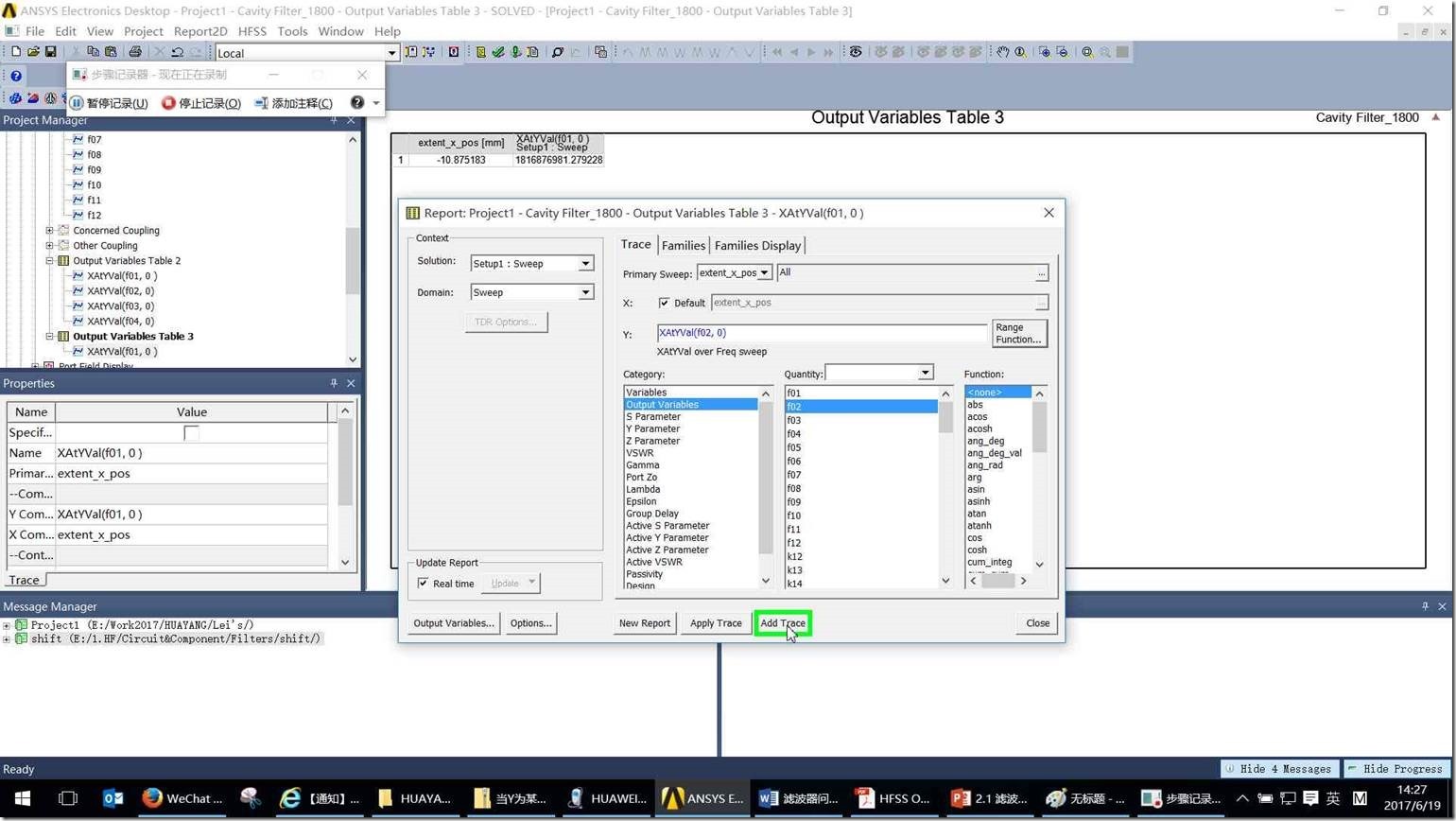

步骤 12: 用户在"Add Trace (按钮)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - Output Variables Table 3 - XAtYVal(f01, 0 )"中)

步骤 13: 用户在"f03 (树项目)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - Output Variables Table 3 - XAtYVal(f02, 0)"中)

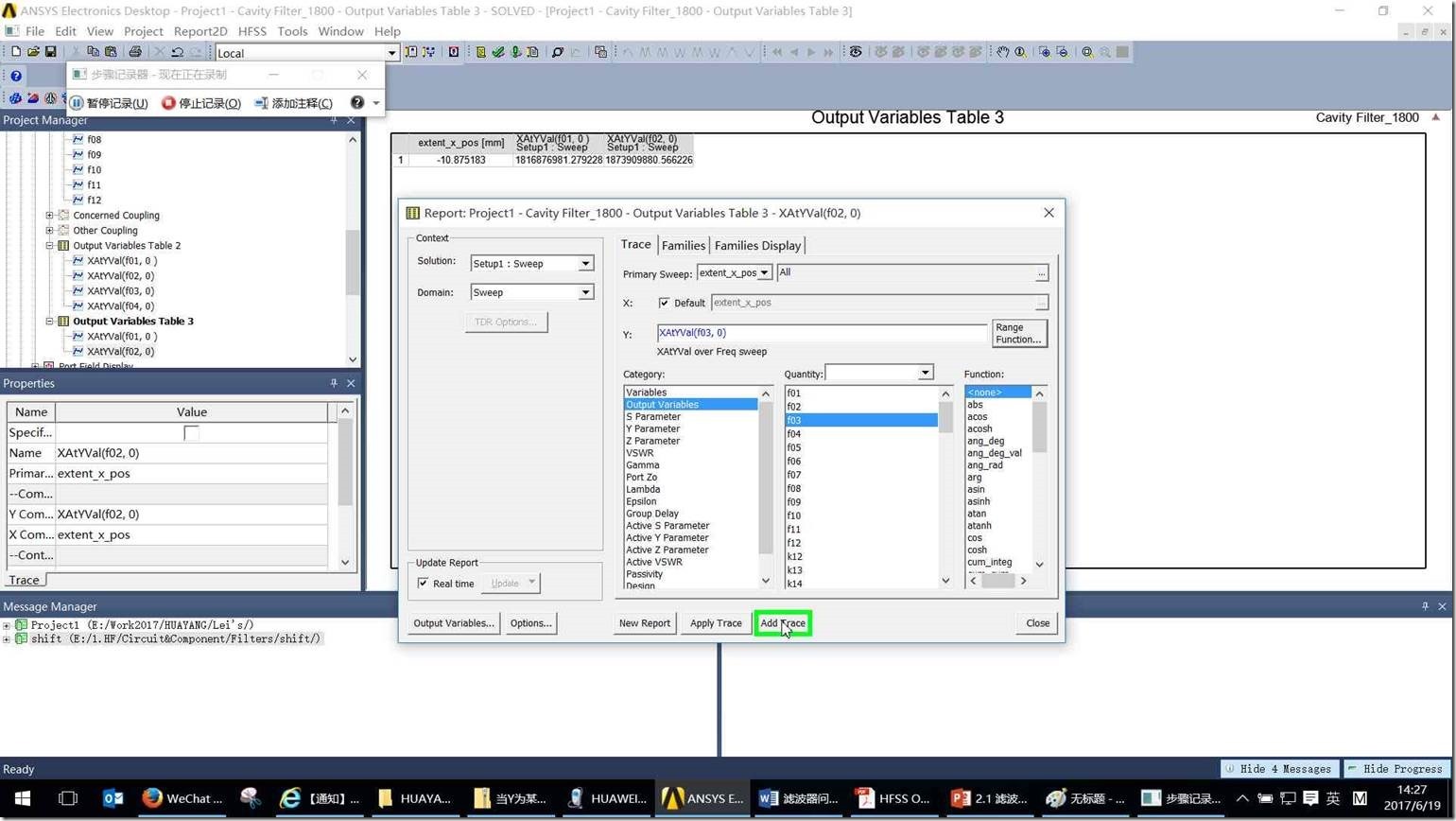

步骤 14: 用户在"Add Trace (按钮)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - Output Variables Table 3 - XAtYVal(f02, 0)"中)

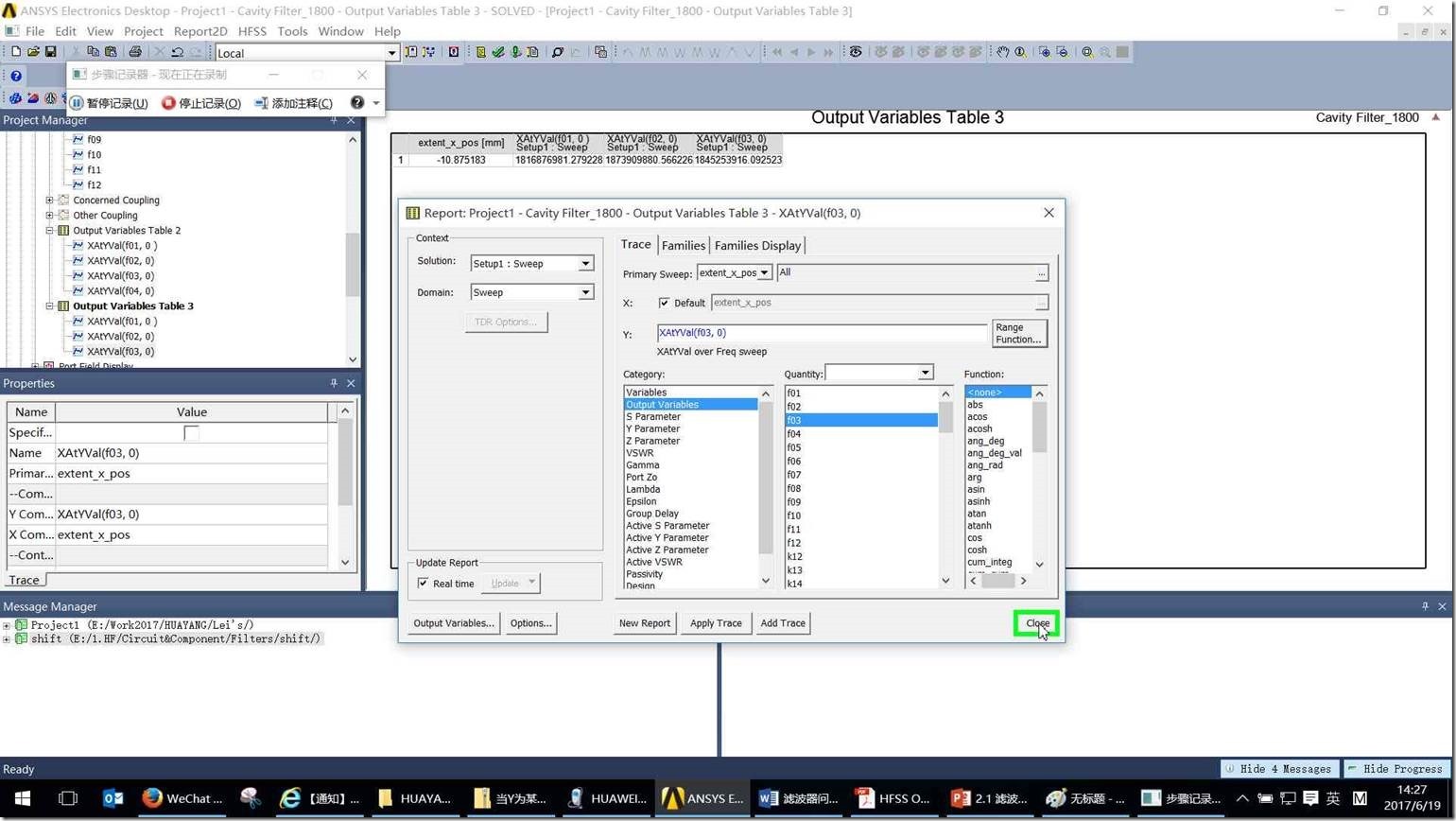

步骤 15: 用户在" Close (按钮)"上左键单击(在"Report: Project1 - Cavity Filter_1800 - Output Variables Table 3 - XAtYVal(f03, 0)"中)
