BSIM3模型

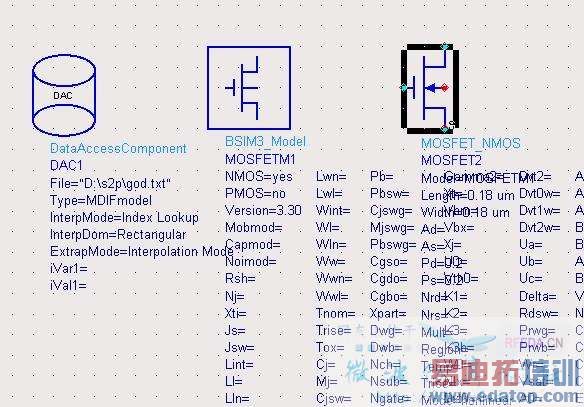

god.txt文件如下，请问这样对不
REM 此为注释文字
BEGIN BDTA
% TNOM TOX XJ NCH VTH0 K1 K2 K3
27 4.1E-9 1E-7 2.3549E17 0.3662473 0.5864999 1.127266E-3 1E-3
% K3B W0 NLX DVT0W DVT1W DVT2W DVT0 DVT1
0.0294061 1E-7 1.630684E-7 0 0 0 1.2064649 0.4215486
% DVT2 U0 UA UB UC VSAT A0
0.0197749 273.8094484 -1.40499E-9 2.408323E-18 6.504826E-11 1.355009E5 2
% AGS B0 B1 KETA A1 A2 RDSW
0.4449958 1.901075E-7 4.99995E-6 -0.0164863 3.868769E-4 0.4640272 123.3376355
% PRWG PRWB WR WINT LINT XL XW DWG DWB
0.5 -0.197728 1 0 1.690044E-8 0 -1E-8 -4.728719E-9 -2.452411E-9
% VOFF NFACTOR CIT CDSC CDSCD CDSCB ETA0 ETAB DSUB
-0.0948017 2.1860065 0 2.4E-4 0 0 2.230928E-3 6.028975E-5 0.0145467
% PCLM PDIBLC1 PDIBLC2 PDIBLCB DROUT PSCBE1 PSCBE2 PVAG
1.3822069 0.1762787 1.66653E-3 -0.1 0.7694691 8.91287E9 7.349607E-9 1.685917E-3
% DELTA RSH MOBMOD PRT UTE KT1 KT1L KT2 UA1 UB1 UC1
0.01 6.7 1 0 -1.5 -0.11 0 0.022 4.31E-9 -7.61E-18 -5.6E-11
% AT WL WLN WW WWN WWL LL LLN LW LWN LWL CAPMOD
3.3E4 0 1 0 1 0 0 1 0 1 0 2
% XPART CGDO CGSO CGBO CJ PB MJ CJSW
0.5 8.23E-10 8.23E-10 1E-12 9.466429E-4 0.8 0.3820266 2.608154E-10
% PBSW MJSW CJSWG PBSWG MJSWG CF PVTH0 PRDSW
0.8 0.102322 3.3E-10 0.8 0.102322 0 -2.199373E-3 -0.9368961
% PK2 WKETA LKETA PU0 PUA PUB
1.593254E-3 -2.880976E-3 7.165078E-3 6.777519 5.505418E-12 8.84133E-25
% PVSAT PETA0 PKETA
2.006286E3 1.003159E-4 -6.759277E-3
END BDTA
