Surface Data problem

I have written an equation for plotting the load power contour of RF power amplifier in data display window. The function is used "" contour() "" to plot the power. This function is giving an error that the 1st argument of the function, which is the load power in dBm, is a surface data and it is unable to contour the surface, an invalid surface problem occurs. So can anyone suggest me how to solve this problem of surface data? I have also used the function ""contour_ex"". It is also of no use.

Can you please provide the detailed characteristics of the data we're talking about? Place 'what(your_var)' into a tabular display and provide the info. (Screenshot/text)

As far as I can remember, contour() requires at least scalar 2-dimensional sweep data with regular (uni-grid) stepping to work. Irregular stuff is probably not supported.

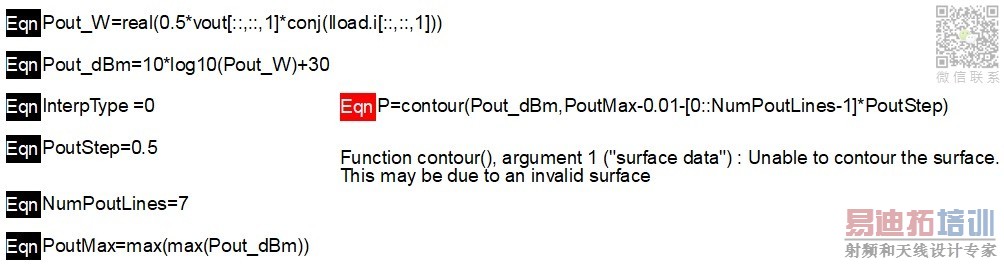

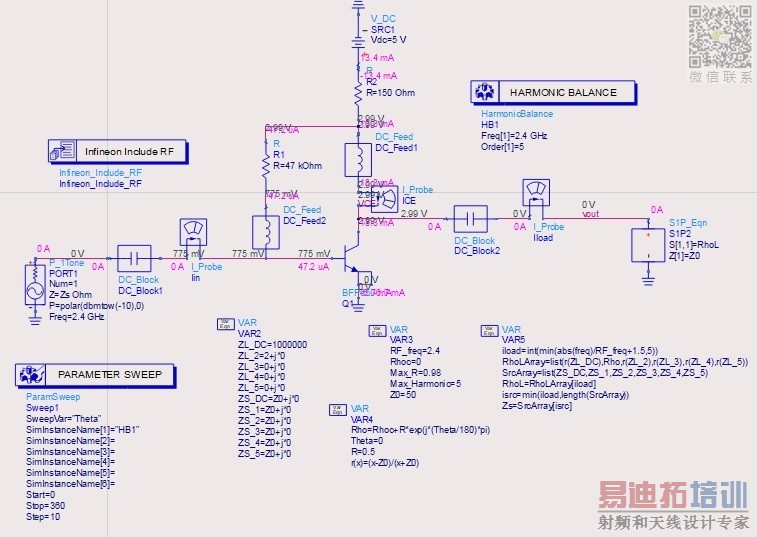

Hello Sir, I am attaching the schematic view of my circuit and the equations that I have written in the data display window. The red colored equation is showing the previously said problem.
