plotting help

Im currently working on designing a rectenna using ADS software.
as i am new to this software i would like to know how to plot the following graphs in ADS
1) conversion efficiency vs input power
2)conversion efficiency vs load resistance

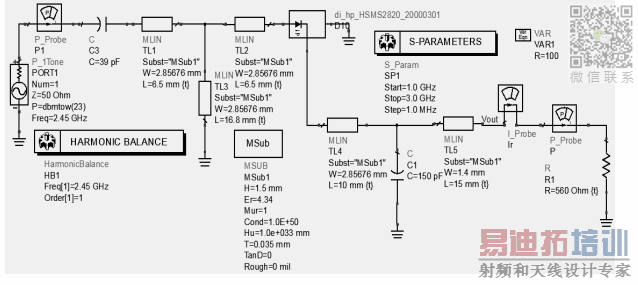

i am attaching the screenshots of the graphs and circuit.

附图/附件



Since you are simulating a nonlinear circuit which should generate harmonics, you need to increase the order on the harmonic balance controller.
You may find these examples useful for learning about ADS. From any schematic, select DesignGuide > Amplifier > DC and Bias Point Simulations > BJT Output Power, Distortion vs. Load R
DesignGuide > Mixers > ...
