TITPS59650IntelIMVP－7系列处理器电源解决方案

录入：edatop.com 点击：

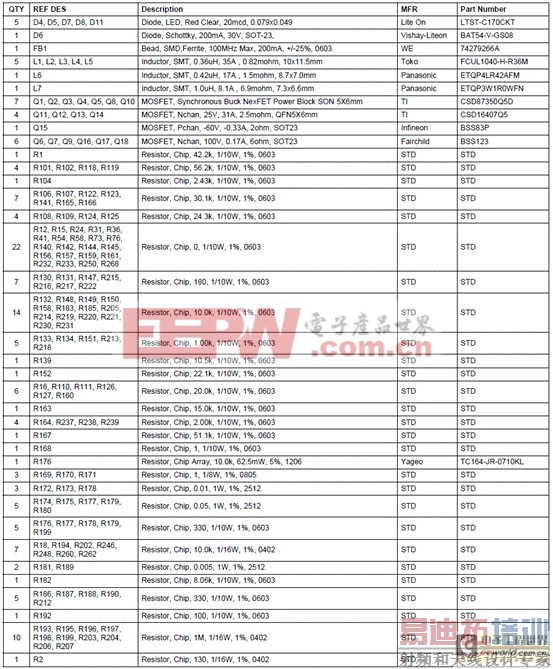

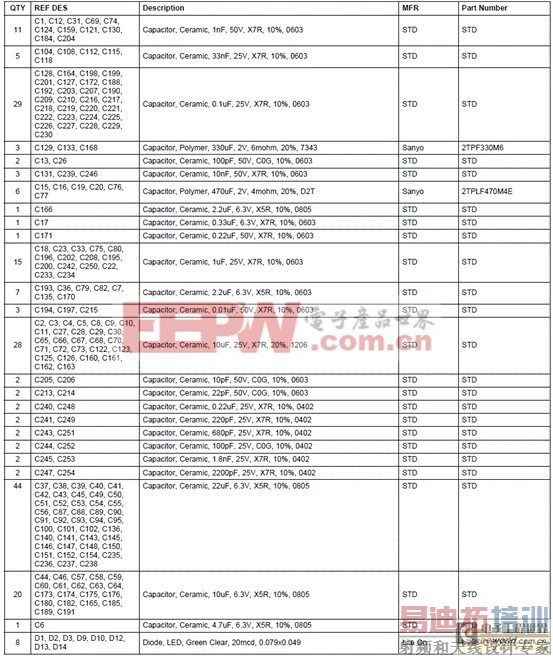

TI公司的TPS51650和TPS59650是集成了两个栅极驱动器的双路 VID全兼容的IMVP-7降压控制器,支持CPU和GPU输出,CPU通路具有一相,二相或三相,GPU通路具有一相或二相,8位 AC具有0.250V到1.52V的输出,转换电压范围3V到28V,主要用在IMVP-7 VCORE以及适配器,电池,NVDC或3V,5V和12V电源.本文介绍了TPS51650和TPS59650主要特性,方框图,多种典型应用电路,以及TPS59650EVM-753评估模块主要特性和指标,方框图,电路,材料清单和PCB元件布局图.

The TPS51650 and TPS59650 are dual-channel, fully SVID compliant IMVP-7 step-down controllers with two integrated gate drivers. Advanced control features such as D-CAP+ architecture with overlapping pulse support (undershoot reduction, USR) and overshoot reduction (OSR) provide fast transient response, lowest output capacitance and high efficiency. All of these controllers also support single-phase operation for light loads. The full compliment of IMVP-7 I/O is integrated into the controllers including dual PGOOD signals, ALERT and VR_HOT. Adjustable control of VCORE slew rate and voltage positioning round out the IMVP-7 features. In addition, the controllers’ CPU channel includes two high-current FET gate drivers to drive high-side and low-side N-channel FETs with exceptionally high speed and low switching loss.

TPS51650和TPS59650主要特性:

Intel IMVP-7 Serial VID (SVID) Compliant

Supports CPU and GPU Outputs

CPU Channel One-Phase, Two-Phase, or Three-Phase

One-Phase or Two-Phase GPU Channel

Full IMVP-7 Mobile Feature Set Including Digital Current Monitor

8-Bit DAC with 0.250-V to 1.52-V Output Range

Optimized Efficiency at Light and Heavy Loads

VCORE Overshoot Reduction (OSR)

VCORE Undershoot Reduction (USR)

Accurate, Adjustable Voltage Positioning

8 Independent Frequency Selections per Channel (CPU/GPU

Patent Pending AutoBalance Phase Balancing

Selectable 8-Level Current Limit

3-V to 28-V Conversion Voltage Range

Two Integrated Fast FET Drivers w/Integrated Boost FET

Selectable Address (TPS59650 only)

Small 6 × 6 , 48-Pin, QFN, PowerPAD Package

TPS51650和TPS59650应用:

IMVP-7 VCORE Applications for Adapter, Battery, NVDC or 3-V, 5-V, and 12-V Rails

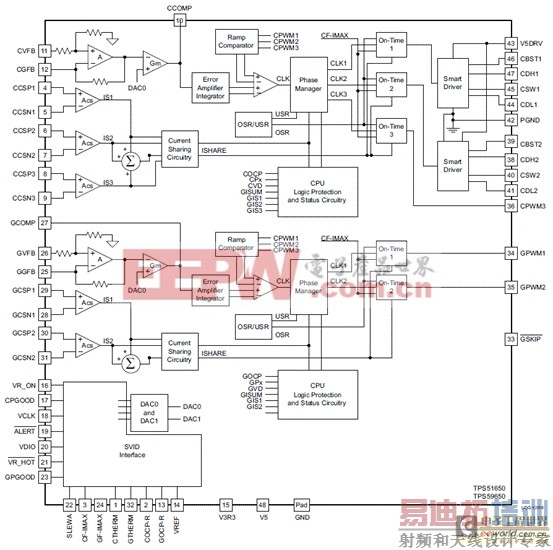

图1.TPS51650和TPS59650方框图

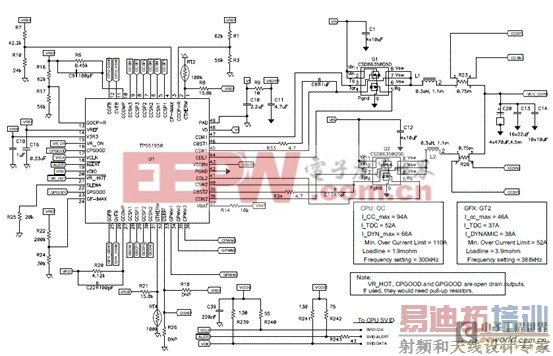

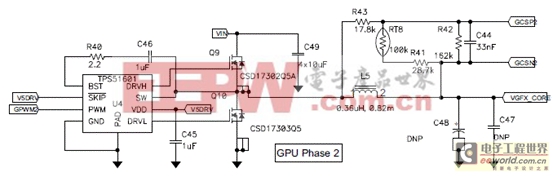

图2.TPS51650带电感DCR电流检测的三相CPU,2相GPU应用电路图

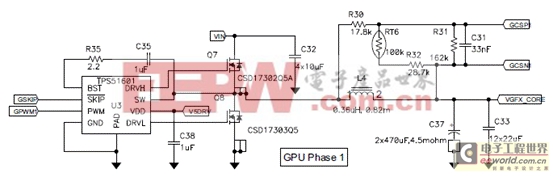

图3.带电感DCR电流检测的一相GPU应用电路图

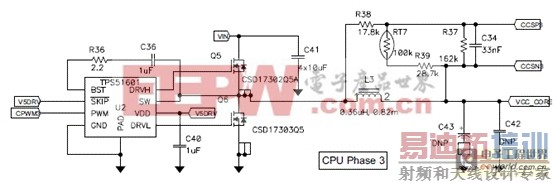

图4.带电感DCR电流检测的三相CPU应用电路图

图5.带电感DCR电流检测的2相CPU应用电路图

图6.带电感DCR电流检测的2相CPU和GPU不能的应用电路图

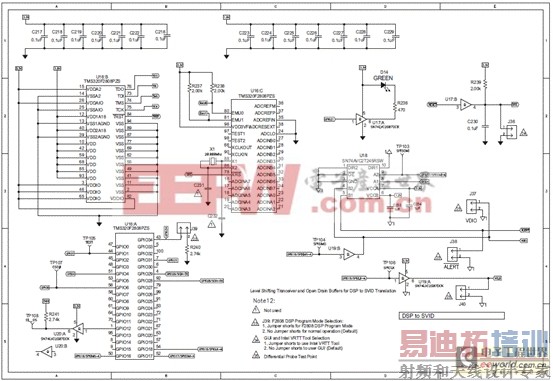

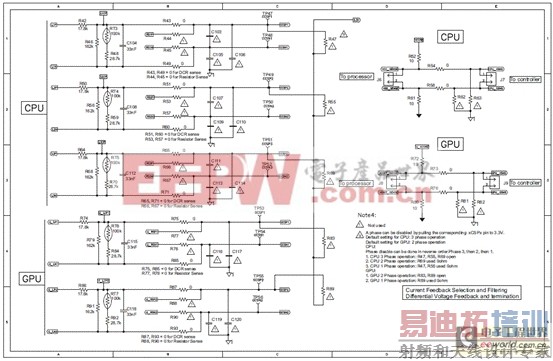

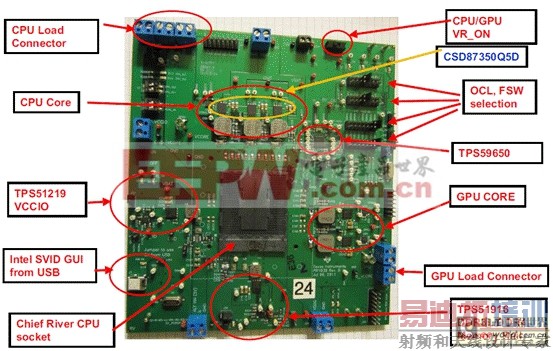

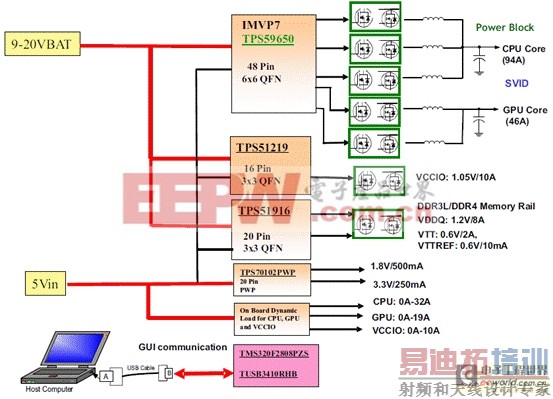

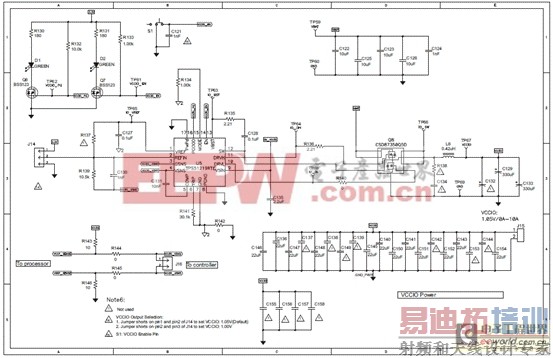

TPS59650EVM-753评估模块

The TPS59650EVM-753 is designed to use a 9V-20V Input bus to produce 6 regulated outputs for IMVP7 SVID CPU/GPU Power System. The TPS59650EVM-753 is specially designed to demonstrate the TPS59650 full IMVP7 mobile feature while providing GUI communication programing and a number of test points to evaluate the static and dynamic performance of TPS59650.

TPS59650EVM-753评估模块典型应用:

IMVP7 Vcore Applications for Adapter, Battery, NVDC or 3V/5V/12V rails

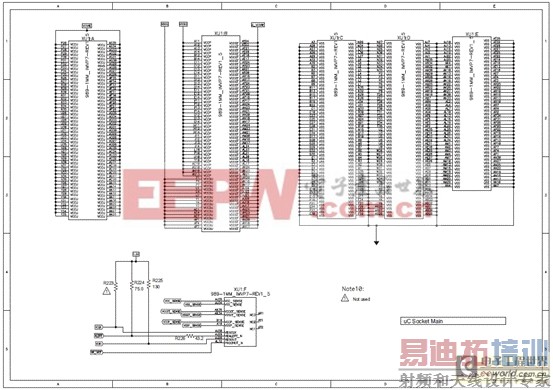

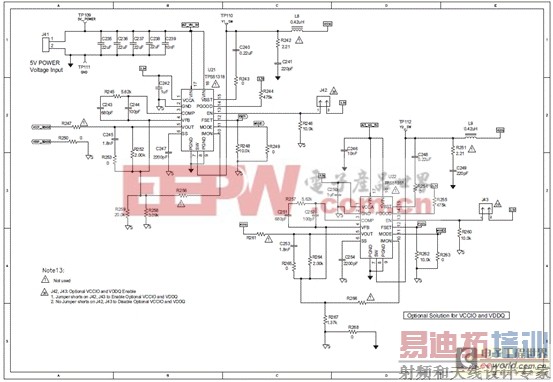

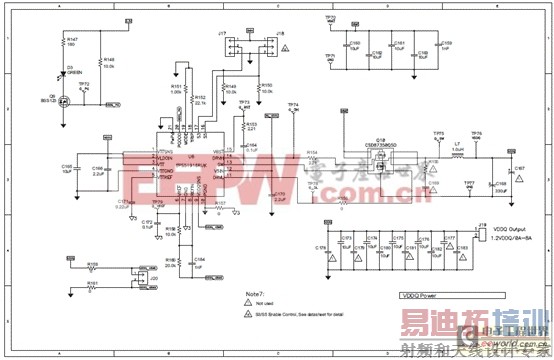

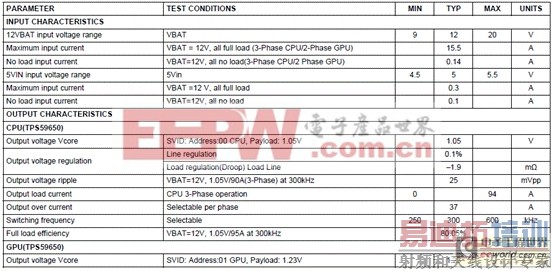

TPS59650EVM-753评估模块主要特性:

Complete solution for 9V-20V Input Intel IMVP7 SVID Power System

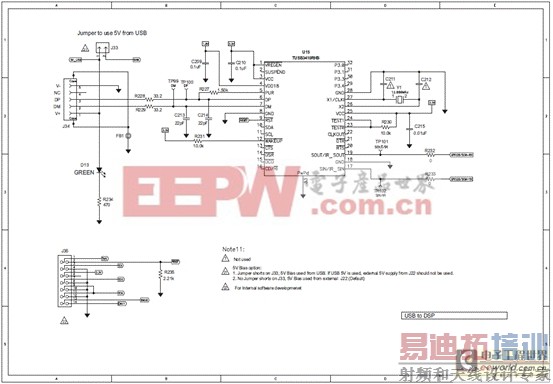

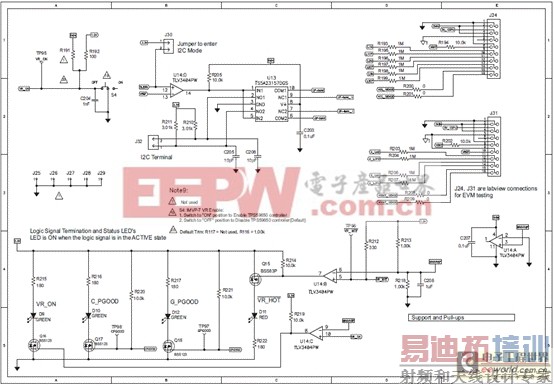

GUI communication to demonstrate full IMVP7 Mobile feature

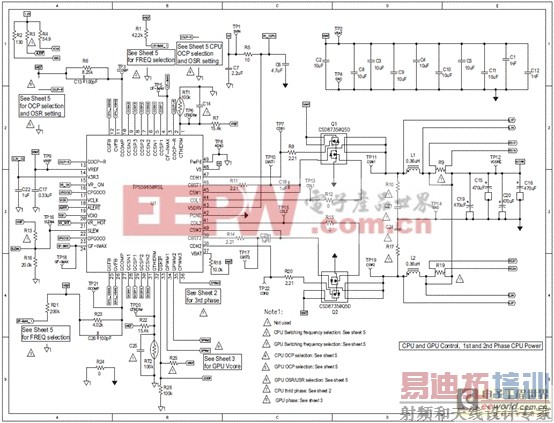

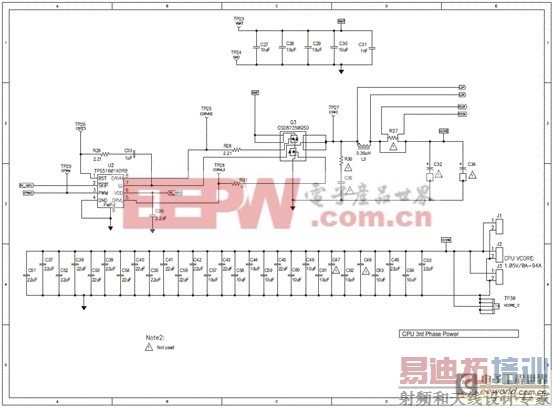

3-Phase CPU Vcore can support up to 94A output current

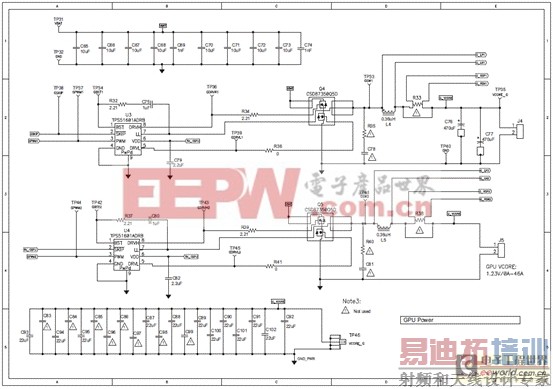

2-Phase GPU Vcore can support up to 46A output current

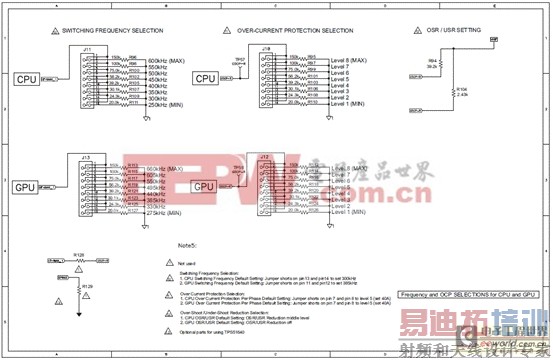

8 Selectable Switching frequency for CPU and GPU power

8 Levels selectable current limit for CPU and GPU power

Switches or Jumpers for each output enable

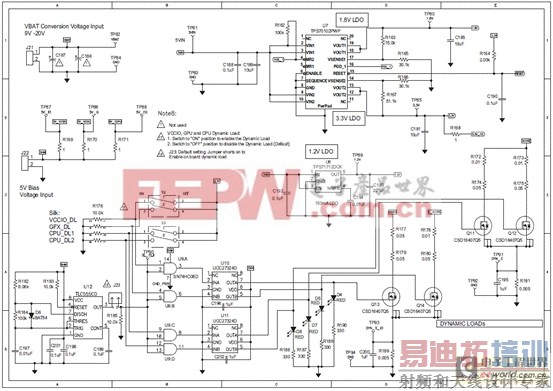

On Board Dynamic Load for CPU, GPU Vcore and VCCIO output

High efficiency and high density by using TI power block MOSFET

Convenient test points for probing critical waveforms

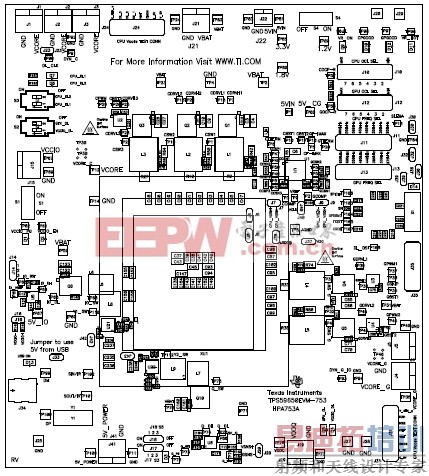

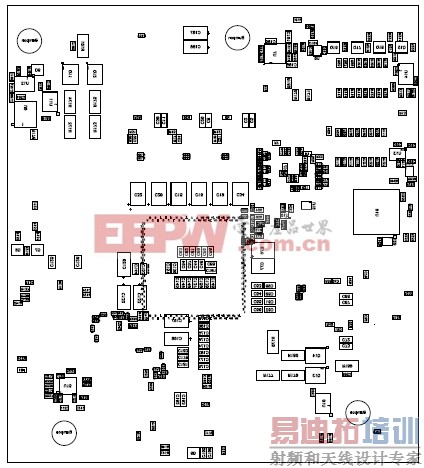

Eight Layer PCB with 1oz copper SLUU896–
