CST2013: EMC / Renorm Probes+Voltages to EMC-Frequency Source
Home: MacrosMacrosEMCRenorm Probes+Voltages to EMC-Frequency Source
This macro performs a frequency scaling to all probe and voltage monitors. There are two different ways of renormalizing:
1. An external data file can be used, which contains the frequency spectrum of the EMC-source.
2. All discrete ports, which are usually scaled to 1 Watt peak power, can be rescaled to a voltage excitation of 1Volt.

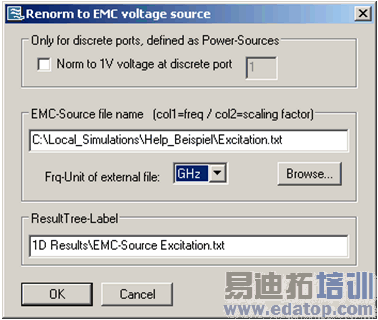

Norm to 1V voltage at discrete port:
If this box is checked, the chosen port is normalized to an input voltage of 1V.
EMC-Source file name:
Here the EMC-frequency source can be imported. The file should have a 2 column format, where the first column contains the frequency and the second column the amplitude of the EMC-frequency source.
Frq.-Unit of external file:
The frequency unit of the external file can be different from the one within the project, which is adjusted by this setting.
Browse:
Pressing this button allows browsing for the external data file of the EMC-frequency source.
ResultTree-Label:

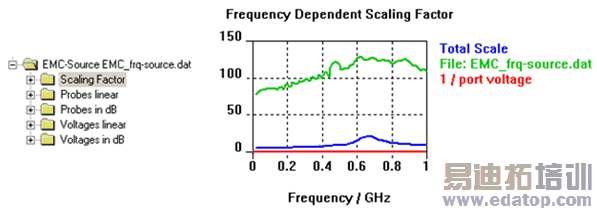

The results are stored in the ResultTree in a separate folder with the name assigned here.
OK
Performs the renormalization and leaves the dialog.
Cancel
Closes this dialog box without performing any further action.
Help
Shows this help text.
