CST2013: Simplify Sheet Metal
Modeling: ToolsShape ToolsSolid to Sheet ConversionSimplify Sheet Metal
With this action you can simplify sheet metal body to face. Simplification works only on sheet metal bodies, where the thickness is constant throughout the body.
Simplify Sheet Metal |
Simplify Sheet Metal |
Extract larger face: Check here if you want to extract larger side of sheet metal body after simplification.
Keep original solid: Check here if you want to keep the original solid after simplification, if not the original solid will be deleted.
Tolerance frame
Thickness: Within this specified tolerance axial thickness can vary across the sheet metal body.
Angular: Within this specified tolerance angular thickness can vary across the sheet metal body.
OK
Accepts the input and closes the window.
Preview
Previews the outcome of the current settings. This helps to visualize the simplified sheet.

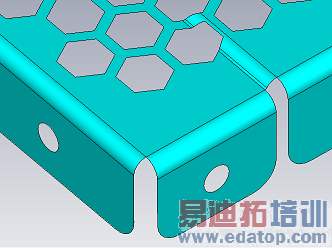

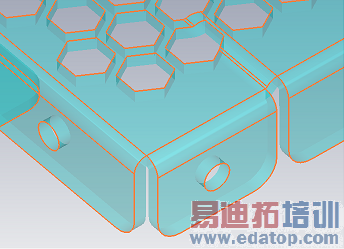

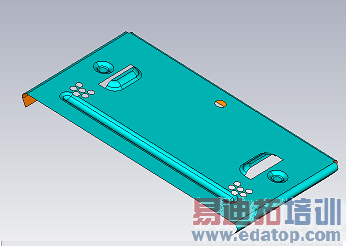

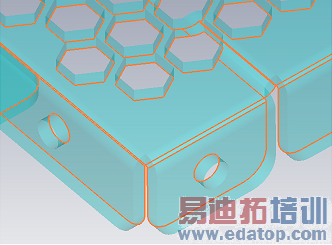

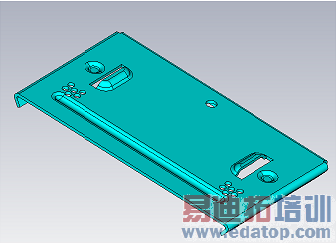

Largest Face | Second Largest Face |
Cancel
Closes this dialog box without performing any further action.
Help
Shows this help text.
