CST2013: Create a Cylinder

Modeling: ShapesCylinderCircular Cylinder

In this dialog box you may specify the dimensions of a cylinder either numerically or by using expressions. The construction will always be performed in the currently active coordinate system.

Each cylinder will be assigned to a particular material in which all shapes will share the same material properties and colors.

The new cylinder is also associated to a certain component and is identified by a unique name within this component. The shape can be addressed by this name for subsequent editing operations.

As soon as the shape is defined it will appear in the main plot window and beneath the associated component in the navigation tree

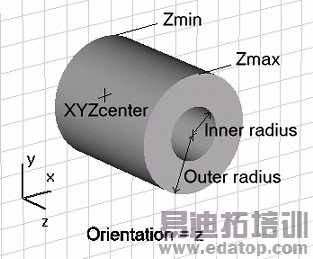

The picture below shows a cylinder defined in global coordinates:

Name

Specify the unique name for the cylinder.

Orientation: X/Y/Z/U/V/W

Specify the orientation of the cylinder axis along the currently active coordinate system. The axis must always be aligned with one of the coordinate axes. To define a cylinder axis which is not parallel to one of the coordinate axes you have to specify a local coordinate system for which one of its axes points into the desired direction.

According to the currently active coordinate system only either X/Y/Z (global coordinates) or U/V/W (local coordinates) will be shown in the dialog box.

Outer radius

Specify a valid expression for the outer radius of the cylinder.

Inner radius

Specify a valid expression for the inner radius of the cylinder to define a washer. To define a solid cylinder just set this value to zero.

Xcenter, Ycenter, Zcenter

Specify valid expressions for the center coordinates of the cylinder base in the global coordinate system perpendicular to the cylinder axis. According to the orientation, only two of these entries will appear in the dialog box. Please note that these entries only appear when the global coordinate system is currently active.

Xmin, Ymin, Zmin, Xmax, Ymax, Zmax

Specify valid expressions for the start and end coordinates of the cylinder along the orientation of the cylinder axis. According to the orientation only one pair of these settings (Xmin/Xmax, Ymin/Ymax or Zmin/Zmax) will be shown in the dialog box. Please note that these entries only appear when the global coordinate system is currently active

Ucenter, Vcenter, Wcenter

Specify valid expressions for the center coordinates of the cylinder base in the local coordinate system perpendicular to the cylinder axis. According to the orientation, only two of these entries will appear in the dialog box. Please note that these entries only appear when a local coordinate system is currently active.

Umin, Vmin, Wmin, Umax, Vmax, Wmax

Specify valid expressions for the start and end coordinates of the cylinder along the orientation of the cylinder axis. According to the orientation only one pair of these settings (Umin/Umax, Vmin/Vmax or Wmin/Wmax) will be shown in the dialog box. Please note that these entries only appear when a local coordinate system is currently active.

Segments

Specify a valid integer expression for the segmentation of the cylinder. The bottom and top will be divided into the specified number.

Component

Choose a new component from the select list. You can also create a new component by typing the name of the new component.

Material

Select the material to which this shape will be assigned from the list of previously defined materials or create a new material by selecting [New Material...]. You can also load a material from the material library by selecting [Load from Material Library...].

OK

Press this button to finally create the cylinder.

Preview

Press this button to create a preview image of the cylinder. This option is very useful to check the settings before you actually create the shape.

Cancel

Closes this dialog box without performing any further action.

Help

Shows this help text.
