CST2013: 1D / S-Parameter
Post Processing: Result TemplatesTemplate Based Post Processing
This template stores S-Parameter data as result data, to be compared across parameter sweeps or optimization runs.

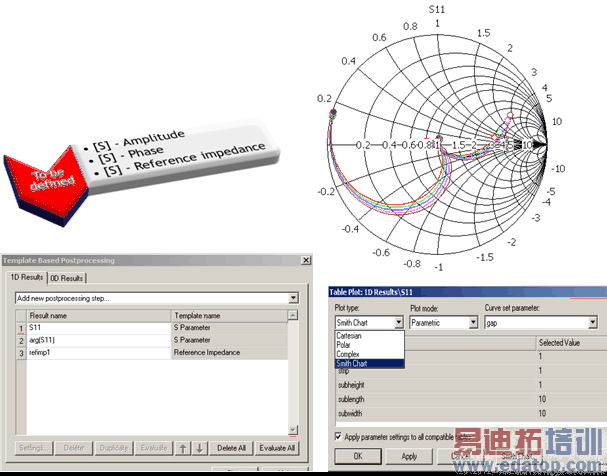

In case, you are interested to plot a Smith Chart Table instead of separate cartesian plots for amplitude and phase, three result templates need to be defined in advance, namely:
S-Parameter linear Amplitude
S-Parameter Phase
Reference Impedance
Afterwards you are able to display a table as Smith Chart, by changing the Plot type in the Table Properties.
