CST2013: EMC / Calculate Broadband EMC-Norm
Home: MacrosMacrosEMCCalculate Broadband EMC-Norm

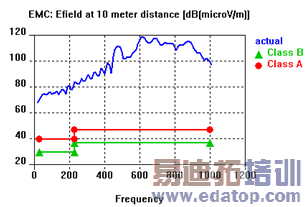

This macro returns the maximum of the electric field vector in dB (microV/m). The electric field is evaluated on a virtual sphere of 3m and 10m, respectively. This macro works only in combination with previously defined and calculated farfield monitors. In case of several defined farfield monitors, this EMC-norm will be obtained for every defined frequency. The results are stored in the Result Tree /1D Results EMC. For comparison purposes, the EN/IEC and FCC Class-A and Class-B standards are available.
EMC Limits
Choose either the EN/IEC limits or FCC limits to be plotted together with the electric field results.
Excitation String
If several excitations have been calculated, different farfield entries exist for the same frequency. Please choose the correct excitation string. When applying this macro a second time with another excitation string, the first result are not overwritten.
OK
Starts the electric field calculation.
Cancel
Closes this dialog box without performing any further action.
Help
Shows this help text.
