HFSS15: Working with the Message Manager

The Message Manager displays messages associated with a project’s development, such as error messages about the design’s setup or informational messages about the progress of an analysis. Error messages contains timestamps with a precision of seconds.

To display or hide the Message Manager:

• Click View> Message Manager.

A check box appears next to this command if the Message Manager is visible.

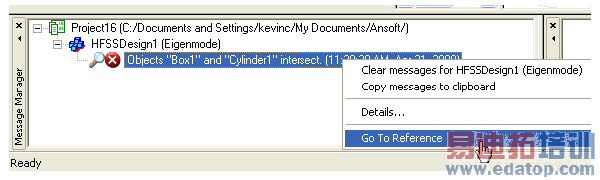

If you right click in the Message Manager window, you see a popup menu that lets you:

• Clear the messages for the current model.

• Copy the messages to the clipboard. This can be helpful for sending the messages to application engineers.

• Details. This brings up a information dialog with the project and design for specific message.

• After you run a validation check, you can right-click on an intersection error message in the Message window, and select Go to reference from the shortcut menu. This selects the intersecting objects.

Related Topics

Showing new messages

Showing errors and warnings

Setting the Message Manager to Open Automatically
