HFSS15: UDM Parameters

UDM geometry can be manipulated through its parameters

• Can be mapped to design or project variable for animation, parametric analysis

• IDs are persisted (allowing to retain boundaries) during parameter edit

UDM geometry is not ‘dynamic updated’ upon parameter edits

• UDM shows a lightening bolt icon by the model name when parameters are edited.

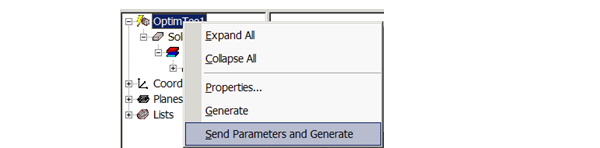

• You must run the Send Parameters and Generate command to synchronize parameters with geometry

Related Topics

UDM Properties

UDM Part Edits
