HFSS15: Tee and OptimTee Waveguide Projects

The Getting Started folder in the Examples/Projects folder contains the versions of the waveguide t-junction modal solution project described in Getting Started with HFSS: A Waveguide T-Junction, and Getting Started with HFSS: Optimizing a Waveguide T-Junction Using HFSS with Optimetrics.

The waveguide T-junction illustrates the basic HFSS features, including :

• the Modeler

• parameterization of a design feature

• setup and analysis

• the use of the Reporter and field animation.

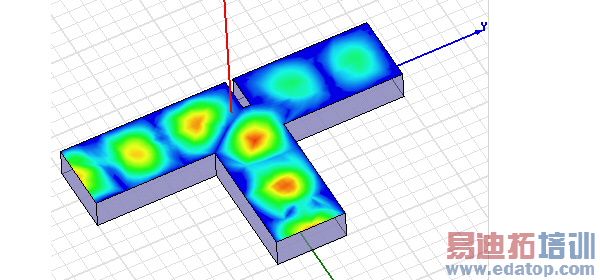

The animated Mag_E1 plot of the E-field when the septum is located 0.2 inches closer to Port 2.

The second version of the wave guide t-junction demonstrates the use of the Optimetrics.

• parametric analysis

• variable for optimization

• an optimization setup

• a cost function

• Optimization analysis.

• plot of cost values versus solved iterations.

• Use of output variables.

See Getting Started Guides.
