HFSS15: Selecting All Objects in a History Tree Group

The history tree groups objects in several categories. Right click on the group for solids, sheets, lines, non-model objects, or unclassified objects to see a shortcut menu command that lets you Select All members of that category.

Under each group, you can also Select All for objects of same the material or parts of same assignment at once. When you right-click on a solid grouping, the menu lets you check whether to group objects by assignment. For example, this history tree has Solids grouped by object.

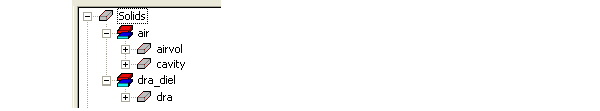

This history tree has Group Objects by Material checked.

This history tree groups Sheet objects by object.

This history tree has Group Sheets by Assignment checked.

Selected objects are highlighted in the modeler window view area.
