HFSS15: Reports for Transient Network with Differential Pairs

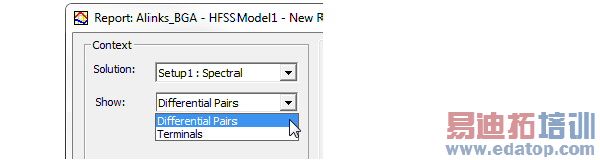

For a Transient Network design with differential pairs defined, the Reporter interface allows selection of single-ended or differential signals just as for driven terminal. The Differential Pairs menu is shown for transient and spectral parameters, and allows you to switch between the two representations. The menu does not appear if differential pairs are not defined.

If the Design Setting "Apply when solving" is in force, it will be restricted to 'Differential Pairs' if they are present and 'Single-Ended' otherwise.

For the Transient solution (as opposed to Spectral), selecting "Differential Pairs" will limit the selected quantities to "input, output, and TDR". For the Spectral solution, all quantities will be available.

As with single-ended S parameters, post process differential pair values will not be available until the solve completes. Post process differential transient signals may be available depending on the method produced by the solver group.

The Transient Display supports the transformation between single-ended and differential transient signals under the same circumstances as the reporter.
