HFSS15: Plotting Vertical Cross-Sections of Far Fields
录入：edatop.com 点击：
When plotting far fields, a vertical cross-section plot results from holding phi fixed and sweeping theta through a range of values.
1. Open the Report dialog box.
2. Click the ellipsis [...] button for the sweep variable corresponding to phi.
This displays a dialog listing all values for the phi variable. The values are the result of the range of phi you specified during the infinite sphere’s setup.
3. Select the fixed value that phi should take in the plot.
HFSS will display values for the vertical cross-section at selected phi cuts of the problem region at a set of theta rotations.

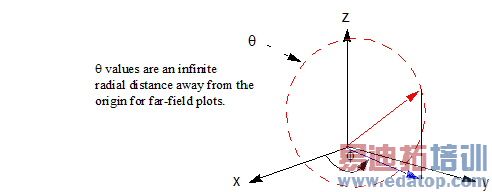

The figure shown below demonstrates the orientation of the vertical cross-section when f is the fixed variable:
