HFSS15: General Setup for Virtual Array Simulation

For a project with an array the General Setup some differences appear in how you can specify Matrix convergence.

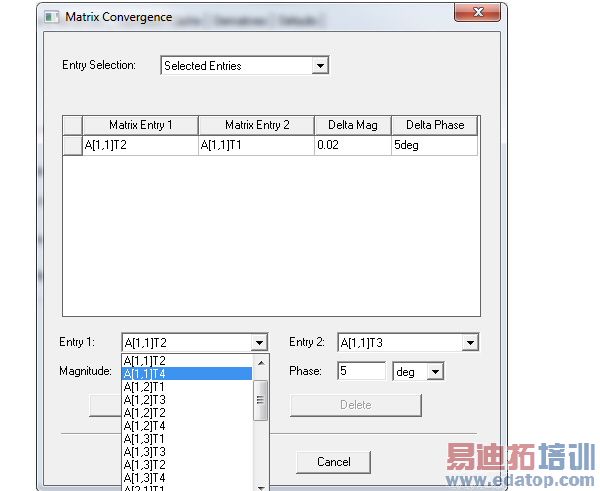

If you select Matrix Convergence, and click Set Magnitude and Phase, you will see the Matrix convergence dialog. In the Matrix Convergence dialogue, if for Entry Selection you choose Selected Entries, (rather than All or Diagonal/Off Diagonal), you will see scrollable drop down menus that let you select from all Array elements to define pairs of Matrix entries.
