HFSS15: Geometry Transfer through ANSYS DesignModeler (DM)
录入：edatop.com 点击：
It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical
• Useful when geometry needs preprocessing for ANSYS simulation
• Can take advantage of geometry commands available in DM

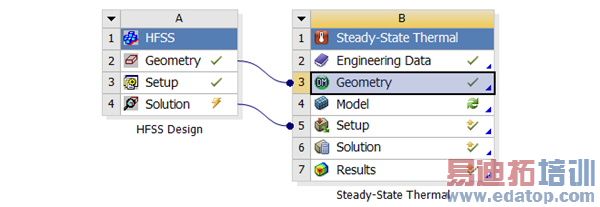

For example, consider an HFSS model linked to DM through the Workbench.

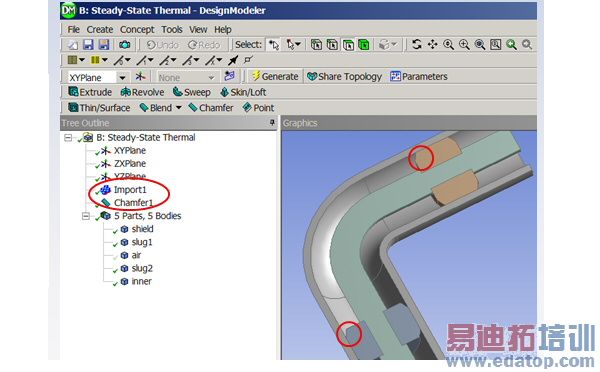

In this case, the figure below shows how a chamfer operation on geometries is imported.
It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical
• Useful when geometry needs preprocessing for ANSYS simulation
• Can take advantage of geometry commands available in DM
