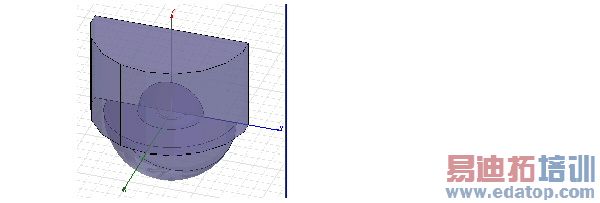

HFSS15: Dielectric Resonator Antenna

The dra_diel directory in the Example/Projects folder contains the modal solution project described in Getting Started With HFSS: A Dielectric Resonator Antenna. See Getting Started Guides.

This design demonstrates the use of:

• boolean operations on geometries,

• the use of symmetry and radiation boundaries

• mesh operations

• lumped ports

• modifying the impedance multiplier because of symmetry

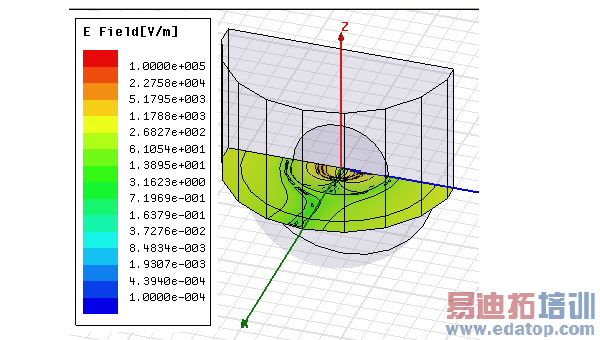

• animation of a field plot

• setting up an infinite sphere and computing antenna parameters
