HFSS15: Analyze and View the Optimization Results
录入：edatop.com 点击：
Right-click on the Optimization Setup to view the short-cut menu and click Analyze to start the simulation. Then right-click again, and select View Analysis Result to view the Post Analysis dialog. Select the Plot radio button to watch the progress of the simulation.

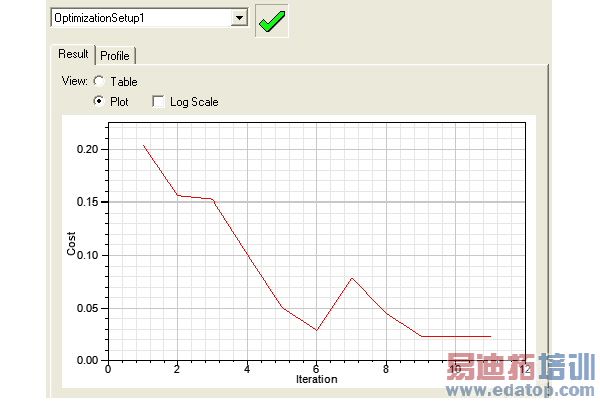

The plot form of the results shows how the Optimization search progresses towards the lowest cost.

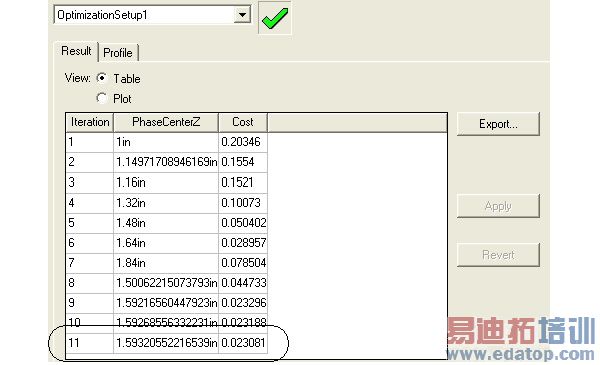

The table form of the Results shows that the Z coordinate of the phase center is the value of the post processing variable when Cost is at minimum.
Related Topics
Determining Phase Center using Optimetrics
