带状线特征阻抗计算器
录入：edatop.com 点击：
Symmetric Stripline Impedance Calculator
Inputs
Trace Thickness
T
Substrate Height
H
Trace Width
W
Substrate Dielectric
Er
Outputs
Impedance (Z):
Introduction
The symmetric stripline is reliable method for creating a transmission line. The stripline is a TEM (transverse electromagnetic) transmission line. Modeling approximation can be used to design the microstrip trace. By understanding the stripline transmission line, designers can properly build these structures to meet their needs.
Description

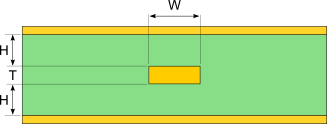

A stripline is constructed with a flat conductor suspended between two ground planes. The conductor and ground planes are separated by a dielectric. One advantage of the stripline is that there is an improve isolation between adjacent traces when compared with the microstrip.
Stripline Transmission Line Models
Models have been created to approximate the characteristics of the microstrip transmission line. The source for these formulas are found in the IPC-2141A (2004) “Design Guide for High-Speed Controlled Impedance Circuit Boards”
