HFSS15: Working with the Progress Window

The Progress window monitors a simulation while it is running.

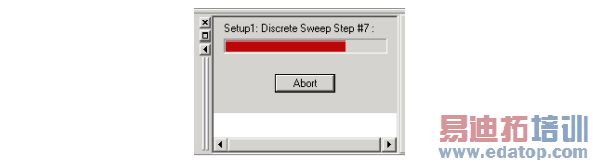

In the image below, the Progress window is displaying the progress of a discrete frequency sweep, which is nearing completion:

To display or hide the Progress window, do one of the following:

• Click View> Progress Window.

A check box appears next to this command if the Progress window is visible.

• Right-click the history tree, and then click Progress on the shortcut menu.

A check box appears next to this command if the Progress window is visible.
