HFSS15: Where the Solvers Apply Scattered or Total Field Formulations
录入：edatop.com 点击：
Scattered Field Formulation
• Monostatic/bistatic RCS of finite scatterers
• Frequency Selective Surfaces (FSSs)
Total Field Formulation
• Monostatic/bistatic RCS of infinite scatterers
• Frequency Selective Surfaces (FSSs)
• When near/far field Link is involved
• EMC/EMI problems
For Scattered Field Decomposition
It is known in the whole domain.
In summary, scattered field descriptions apply:
• Environment material other than vacuum
• Inhomogeneous magnetic material
• Special treatments on
• Ports
• Impedance BCs
• PMC
Total Field Description: Usual Approach

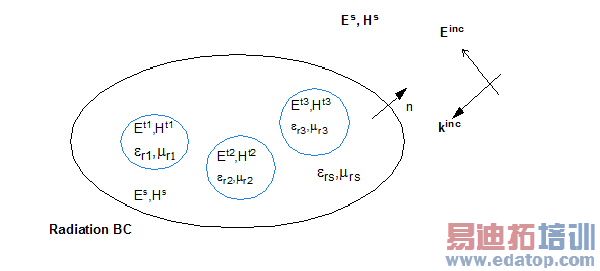

When the incident field is known, everywhere, the solvers take the usual approach. Both E and H jump with n x Einc and n x Hinc on the interfaces, respectively.
Total Field Description: Unusual Approach

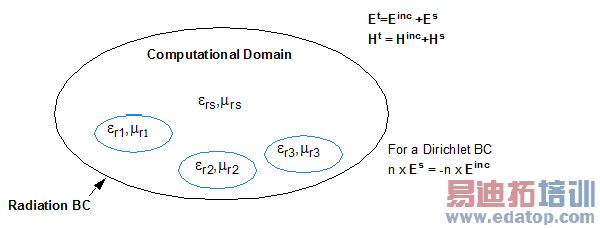

In this case, the incident wave is just on known on the surface. Both E and H jump with n x Einc and n x Hinc on the outer surface respectively.

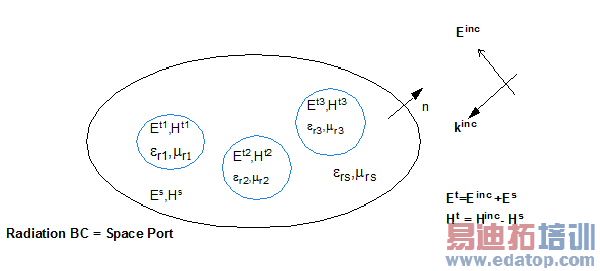

Total Field Description: Space Port Concept
The Radiation Boundary Condition is treated as a space port. The field is decomposed just on the surface of the space port.
