HFSS15: Example of Floquet Ports

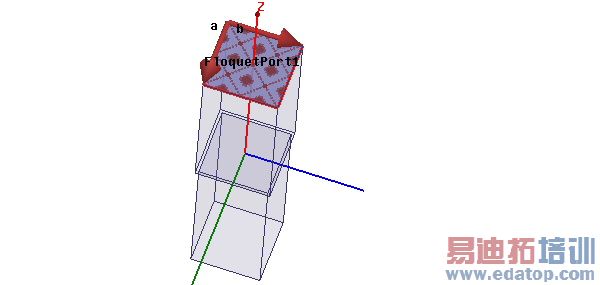

As a simple example, consider an infinite array of radiating rectangular apertures in a ground plane. The figure below depicts a simple HFSS model for the unit cell of the infinite array. The model consists of two boxes. The lower box represents the feeding waveguide and the upper box is the unit cell for the region above the plane. The dimensions and geometry of the unit cell reflect the lattice vectors of the array. Linked boundaries are defined on the cell walls and a Wave port provides the array element excitation.
