HFSS15: Example That Uses Far Field Links
录入：edatop.com 点击：
This section describes linking an HFSS project to an HFSS-IE project while using the common feature of assigning Far Field Wave excitation.

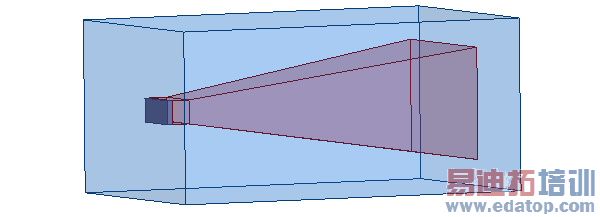

The horn antenna enclosed in an air box in the figure below represents the source project designed in HFSS.

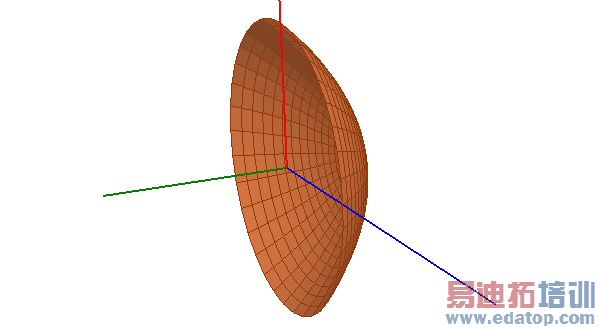

The dish/reflector in the figure below is the target project designed in HFSS-IE.
A perfect E-boundary is assigned on the reflector.

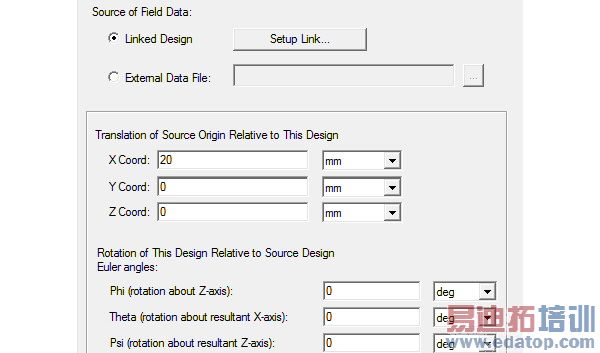

The Far Field Wave Options panel has the following settings.

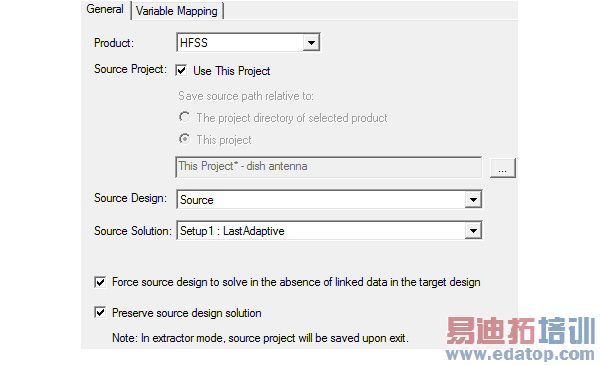

From the Setup Link option, the fields are set as shown in the figure to link the target to the source project (the horn antenna).

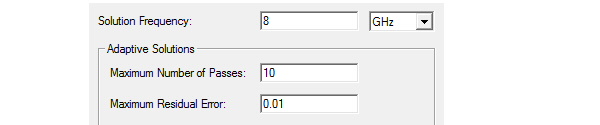

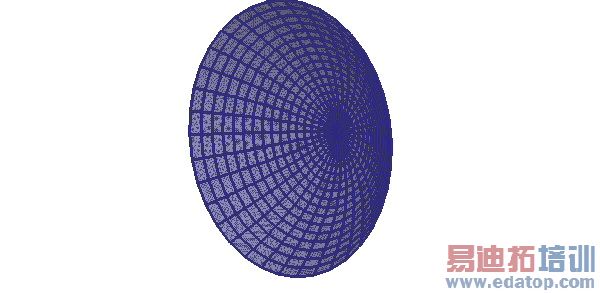

A sample solution setup for this project is shown below:

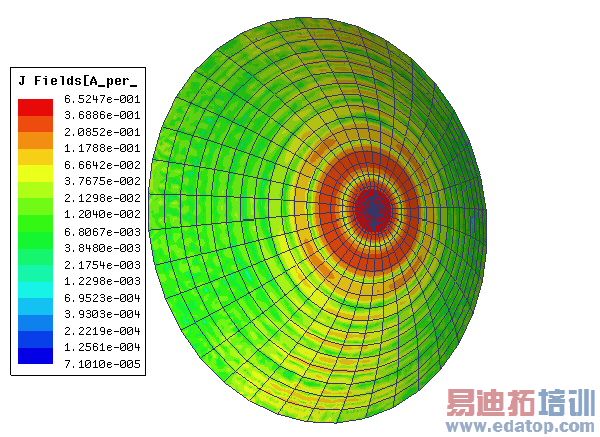

The resulting J Fields (magnetic fields) after solving the project are shown below.
