HFSS15: Creating a Quick Report
录入:edatop.com 点击:
Following is the procedure for creating a quick report.

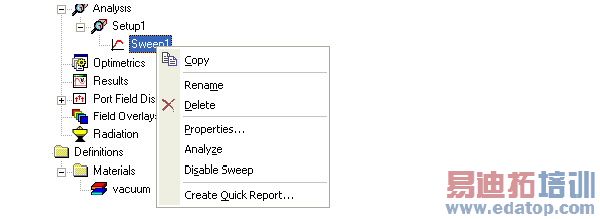

1. On the Project tree under "Analysis", select a setup or sweep icon, or the Results icon.
2. Right-click to display the shortcut menu and select Create Quick Report.
The Quick Report dialog appears.
3. Select the one or more categories for the report from the list and click OK.
A rectangular plot for each selected category displays. The new plot or plots appear in the Project tree under the Results icon.
